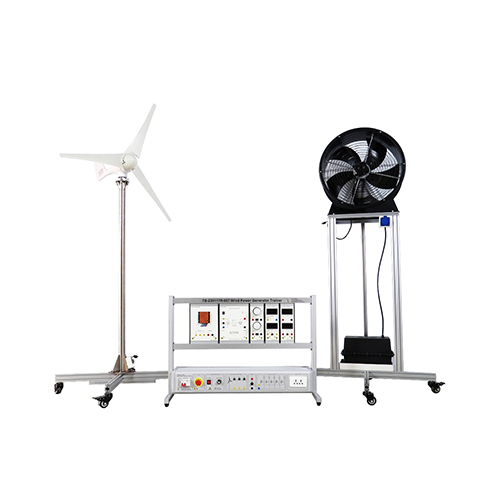

TB-230117R-007 Wind Power Generator Trainer Didactic Equipment Vocational Training Equipment Renewable Training Equipment

Name: Wind Power Generator Trainer Didactic Equipment Vocational Training Equipment Renewable Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: TB-230117R-007
Availability: InStock
Rating: 5 (1 reviews)

1. Product Introduction
1.1 Product Description
This training equipment consists of six major unit systems: power generation unit, charging unit, energy storage unit, inverter module, control unit, and load unit. Through this training platform, students can be familiar with the basic knowledge of wind power generation and the installation, commissioning, operation, maintenance, and fault analysis of wind power generation, understand and analyze fault diagnosis, master its principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors such as higher vocational colleges, technical secondary schools, and technical schools.
1.2 Product Features
(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant as a whole.The bottom is equipped with universal wheels, which can be flexibly moved and independently adjusted in height according to the ground conditions. It is easy to use and not easy to damage.
(2) The wind speed is adjustable, the configuration is complete, and it is easy to use.
(3) The combination of software and hardware can complete the training content of various courses
(4) The training equipment has a good safety protection system.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: Single phase, three wires, AC220V, 50Hz
Wind turbine: three-phase AC12V 100W with 3 blades, starting wind speed 2m/s, rated wind speed 10.5m/s, impeller diameter 1.15m
Wind turbine controller: three-phase AC12V 200W, rectifier output: DC12V
Battery: 12VDC, 100Ah
Inverter: input, DC12V; output, AC230V, 50Hz, continuous power 600W, maximum power 1200W
LED bulb: 12V, 5W
2.2 Dimensions and weight
Dimensions: 1040mm×405mm×740mm
Weight: <150kg

3. Product component names and function introduction
3.1 Product main body

No.	Name
1	Wind turbine
2	Axial fan
3	Equipment hanging box
4	Power box
5	Battery

3.2 Product electrical part

No.	Name
1	Wind power controller module
2	Inverter module
3	DC bulb load module
4	AC voltage and current meter module
5	DC voltage and current meter module
6	Power supply unit
7	Emergency stop unit
8	Simulated wind source unit
9	Wind turbine output unit
10	Battery
11	AC load unit
12	Socket

3.3 Product accessories

No.	Name
1	Power cord
2	Digital multimeter
3	Fuse
4	Fuse
5	4mm safety connection cable(red)
6	4mm safety connection cable(black)
7	4mm safety connection cable(yellow)
8	4mm safety connection cable(blue)
9	4mm safety connection cable(two-color)
10	AC light bulb

4. Product Configuration List

No.	Name	Quantity
1	Wind turbine	1
2	Axial fan	1
3	Wind turbine controller module	1
4	Inverter module	1
5	AC voltage and current meter module	1
6	DC voltage and current meter module	1
7	DC bulb load module	1
8	Power supply unit	1
9	Emergency stop unit	1
10	Simulated wind source unit	1
11	Wind turbine output unit	1
12	Battery	1
13	AC load unit	1
14	Socket	1
15	Power cord	2
16	Digital multimeter	1
17	Fuse	4
18	Fuse	4
19	4mm safety connection cable (red)	5
20	4mm safety connection cable (black)	5
21	4mm safety connection cable (yellow)	5
22	4mm safety connection cable (blue)	5
23	4mm safety connection cable (double color)	5

5. Product teaching experiment list
(1) Battery inverter experiment
(2) Wind power generation and battery voltage and current test experiment
(3) Wind power generation experiment
