ZM2122 Wind Power Generation Training Equipment Didactic Equipment Vocational Training Equipment Renewable Training Equipment

I. Product overview
1.1 Overview

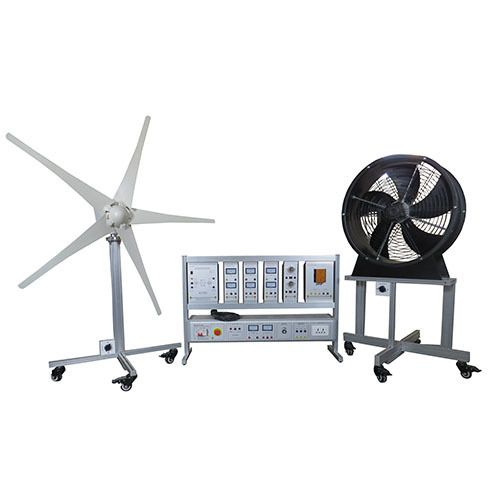

This training equipment is composed of six major unit systems: power generation unit, charging unit, power storage unit, inverter module, control unit, and load unit. You can be familiar with the basic knowledge of wind power generation and the installation, commissioning, operation, maintenance, and fault analysis Have an understanding and analysis of fault diagnosis, master its principles and control methods, and cultivate students' corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors in higher vocational schools, colleges, secondary vocational schools and technical schools.
1.2 Features
(1) The training device adopts aluminum profile column frame structure, the overall is simple and generous, the bottom is equipped with universal wheels, which can be moved flexibly and the height can be adjusted separately according to the ground conditions, easy to use, and not easy to damage.
(2) The wind speed is adjustable, the configuration is complete, and it is easy to use.
(3) The combination of software and hardware can complete the training content of a variety of subjects
(4) The training equipment has a good safety protection system.

II. Performance parameters
(1) Input power: single-phase AC220V±10% 50Hz
(2) The capacity of the whole machine: <2KVA
(3) Weight: <250kg
(4) Working conditions: ambient temperature -10℃～+40℃ relative humidity ＜85% (25℃)
III. Product composition
3.1 Equipment
The equipment is supported by aluminum profile columns, and the bottom is equipped with universal wheels, which can be moved flexibly and adjusted according to the ground conditions.
3.2 Power box
The above includes one 2p circuit breaker, one emergency stop button, one DC 12V battery, one DC 30V voltmeter, one DC 10 ammeter, one analog wind source speed knob, one wind generator output terminal module, and two AC 220V sockets.
Hanging box part
1.AC load module
2. Inverter module
3. Wind power generation control module
4 DC voltage and current meter module
5.AC voltage and current meter module 1
6.AC voltage and current meter module 2
3.3 Accessories
(1) Charger
(2) K4 terminal wires (red 6 wires, black 7 wires, green 6 wires, yellow 6 wires)
(3) K4 terminal (yellow one, green one, red one)
(4) 10 fuses 5A
(5) One cable each for the simulated wind source and the wind power generation device
IV. The training content can be completed
4.1 Wind power experiment
(1) Principle of wind power generation
(2) After the load is connected, the voltage changes.
