Name: Wet Cooling Tower Vocational Trainer Workbench Educational Laboratory Bench Thermal Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: ZT0022

Description

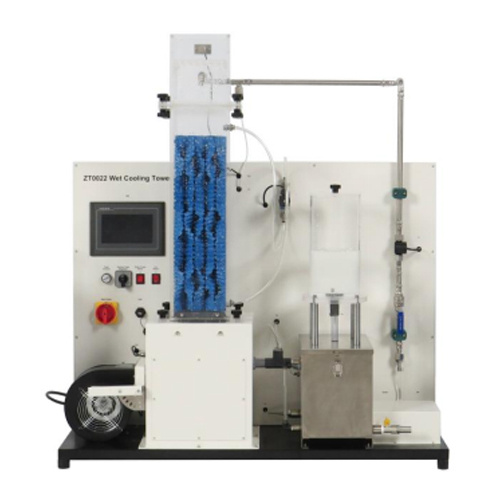

ZT0022 Wet Cooling Tower Vocational Trainer Workbench Educational Laboratory Bench Thermal Training Equipment
1. Product Introduction
1.1 Product Description
Wet Cooling Tower is a small, visual wet cooling tower training device developed for thermal energy. The whole machine adopts an integrated vertical frame structure, and the main body is made of carbon steel powder coating + transparent acrylic visual cylinder.
1.2 Product Features
The lightweight, modular design facilitates easy transport, storage, and relocation between classrooms/laboratories, eliminating the need for a fixed location or external water source.
The water flow operates in a closed-loop system, resulting in extremely low water consumption, low experimental costs, and environmental friendliness.
The cooling tower body and packing components are made of high-transparency acrylic, allowing for direct visualization of the water's state during experiments, facilitating student observation of the wet cooling mechanism.
The fan, water tank, water pump, tower body, and control panel are integrated into a single base, resulting in a compact structure and small footprint. The corrosion-resistant stainless steel piping allows for easy assembly and disassembly, making it suitable for long-term teaching use in laboratories.
Technical Specifications
2.1 Basic Technical Parameters

Operating power supply

Single-phase three-wire AC 220V, 50Hz

2.2 Equipment External Parameters

Dimension	1130mmX470mmX1230mm
Weight	<100kg

3 Product Introduction
3.1 Main Body of the Product

No.	Name	Qty.
1	Ventilation tower body	1
2	Fan	1
3	Fan outlet damper switch	1
4	Water tank inlet	1
5	Water tank	1
6	Inlet valve	1
7	Upper water tank	1
8	Temperature and humidity sensor	1
9	Ventilation tower outlet	1
10	Equipment panel	1
11	HMI	1

3.2 Product Accessories

No.	Name	Quantity
1	USB cable	1
2	Pipe clamp	1
3	Fuse core	1
4	USB flash drive	1
5	Water pipe	1

3.3 Product HMI Section

3.3.1 Main Page

No.	Name	Qty.
1	Fan operating intensity	1
2	Water pump operating intensity	1
3	Temperature display	6
4	Humidity display	2
5	Fan operation indicator	1
6	Page switch button	1
7	Differential pressure display	1
8	Flow rate display	1
9	Water pump operation indicator	1
10	Heating indicator	3

3.3.2 Curve Page

No.	Name	Qty.
1	Graph	1
2	Temperature Display	6
3	Page Back Button	1

3.4 Product Host Computer Section

3.4.1 Main Page Section

No.	Name	Qty.
1	Run button	1
2	Continuous run button	1
3	Stop button	1
4	Main page options	1
5	Graph options	1
6	Graph options	1
7	Table options	1
8	Fan operating intensity	1
9	Water pump operating intensity	1
10	Temperature display	6
11	Humidity display	2
12	Fan operating indicator light	1
13	Differential pressure display	1
14	Water pump operation indicator light	1
15	Heating indicator light	3
16	Flow rate display	1
17	Communication indicator light	1

3.4.2 Temperature and Humidity Curve Section

No.	Name	Qty.
1	Temperature curve	1
2	Temperature display	6
3	Humidity curve	1
4	Humidity display	2

3.4.3 Flow-pressure differential curve section

No.	Name	Qty.
1	Flow rate curve	1
2	Flow rate display	1
3	Differential pressure curve	1
4	Differential pressure display	1

3.4.4 Table Section

No.	Name	Qty.
1	Equipment Table	1
2	Table Export Button	1

4.List of Product Teaching Experiments
(1) Initial equipment operation
(2) Host computer experiment
(3) Influence of inlet water flow rate on the heat transfer capacity of the cooling tower
(4) Influence of inlet water temperature on the heat transfer capacity of the cooling tower
(5) Influence of air flow rate on the heat transfer capacity of the cooling tower
