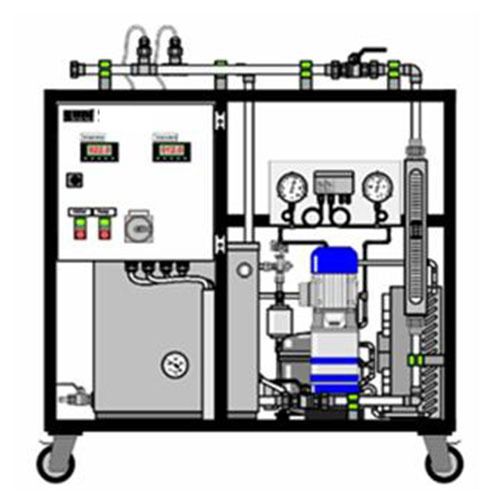

SR3019 Water Chiller Thermal Lab Equipment Teaching Equipment Didactic EquipmentThe unit shall perform the following experiments and investigations:
Specification
[1]water chiller
[2]main components: refrigeration unit to chill water, water tank, circulating pump
[3]electronic controller for water temperature
[4]connection to the base units using hoses with rapid action couplings
[5] refrigerant R22a, environmentally friendly
Technical Data Centrifugal pump
max. flow rate: 600L/h
max. head: 30m
power consumption: 120W Refrigeration system
refrigeration capacity: 833W at -10/32°C
power consumption: 367W Tank: 15L
Dimensions and Weight LxWxH: 1000x630x530mm Weight: approx. 76kg
Material of construction: stainless steel
