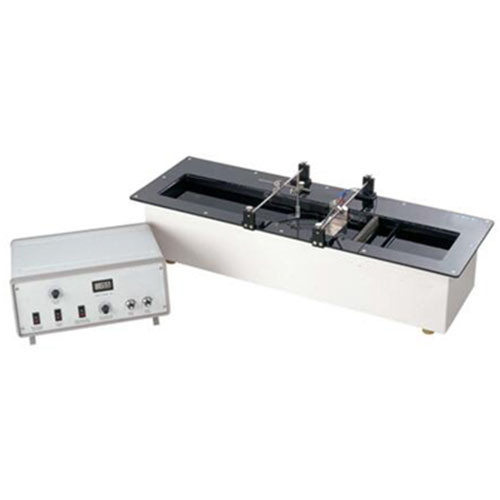

ZM7156 Visualisation of Flow Fields Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
visualisation of flow fields by using electrolytically generated hydrogen bubbles
platinum wire as cathode and stainless steel plate as anode for electrolysis
shallow water channel fitted with indirect LED illumination along the experimental section
various models are included: aerofoil, rectangle, straight plate, curved plate, cylinder (various sizes), various models for changes in cross section
flow straightener and glass balls ensure consistent and low-turbulence flow
different flow velocities via variable-speed circulating pump
setting power (with display), pulse and pause length of the power and the flow velocity in the water channel

Technical Data
Pump with adjustable speed
- max. flow rate: 20L/min
Generator for generation of bubbles
- current: 0...200mA
- pause: 8,4...1800ms
- impulse: 8,4...1800ms
3 cathodes with platinum wire
- diameter: 0,2mm
- length: 30, 50, 75mm
Anode, stainless steel plate, L-shaped
Water channel: approx. 6L
Experimental section: LxWxH: 550x150x50mm
Illumination: white LEDs on the side walls of the water channel
Dimensions and Weight
LxWxH: 900x300x220mm (experimental unit)
LxWxH: 410x400x170mm (display and control unit),
Weight: approx. 24kg
