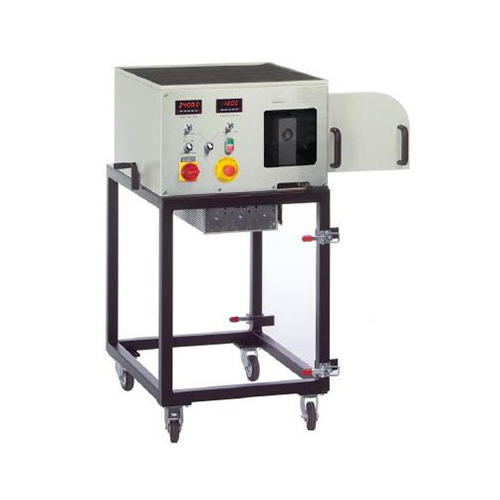

Universal Drive And Brake Unit Refrigeration Trainer Didactic Equipment Teaching Equipment

SR20061 Universal Drive And Brake Unit Refrigeration Trainer Didactic Equipment Teaching Equipment
Brand: ShouldShine
Model: SR20061
Learning Objectives / Experiments
Asynchronous motor as a drive or brake unit in
connection with one of the accessories- torque measurement- speed measurement
Specification
[1] drive and brake unit used for studying different driving or driven machines
[2] asynchronous motor with frequency converter allows 4-quadrant operation: generator or motor mode
[3] asynchronous motor with pendulum suspension, torque measurement via lever arm and force sensor
[4] optical sensor for recording the speed
[5] data exchange between base module and accessories through data cable
[6] measured values for speed and torque are digitally displayed on the device
Technical Data
Asynchronous motor with frequency converter- power: 2200W- max. speed: approx. 3000min-1- max. torque: approx. 12Nm
V-belt operation- length of V-belt: 1157mm, 1180mm, 1250mm- type of V-belt:
SPA - diameter of V-belt pulley: 125mm
Resistive load: 72 ohm, 2400W
Measuring ranges - torque: -15...15Nm - speed: 0...5000min-1
Dimensions and Weight LxWxH: 1000x800x1250mm Weight: approx. 125kg
Required for Operation 400V, 50/60Hz, 3 phases or 230V, 60Hz/CSA,
