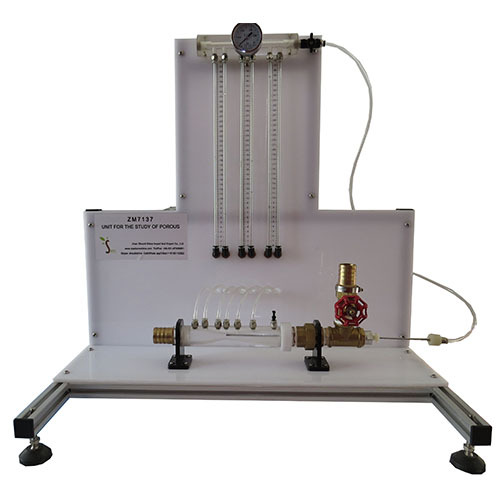

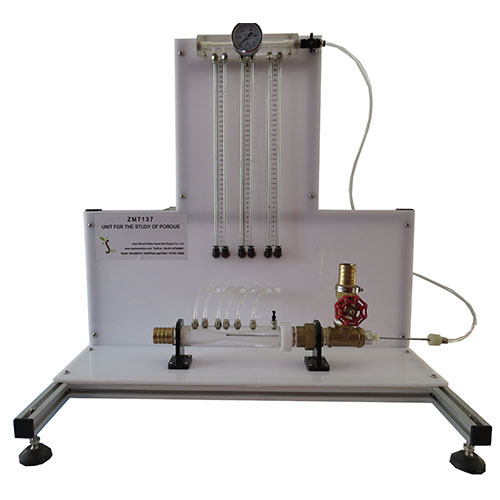

ZM7137 Unit For The Study Of Porous Fluids Engineering Training Equipment Educational Equipment Educational Equipment Vocational Training Equipment1.Stainless structure.
Screws, nuts, plates and all the metallic elements in stainless steel.
Diagram in the front panel with similar distribution to the elements in the real unit.
Quick connections for adaptation to feed hydraulics source.
2. Technical Data:
Manometer range: 0-300 mm. of water.
Number of manometric tubes: 8.
Strangulation diameter upstream: 25 mm.
Narrowing:
Upstream: 10º.
Downstream: 21º.
Venturi’s tube with Pitot tube.
Anodized aluminum structure and panel in painted steel.
Dimensions: 800 x 450 x 700 mm. approx.
Weight: 15 Kg. approx.
