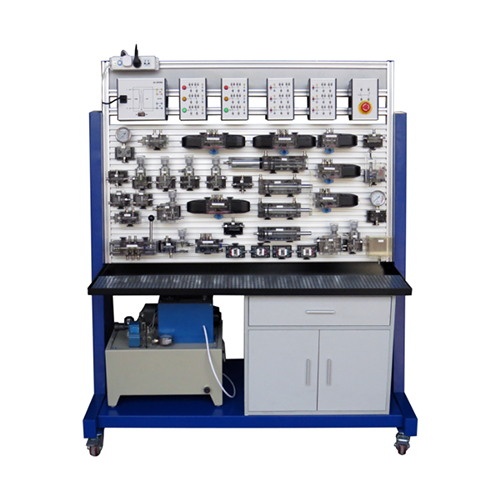

1. Structure introduction
This system adopts transparent hydraulic component, combined aluminum groove structure, mobile oil-way contact, universal electrical circuit, according to use the equipped tools and refer to the experiment instructor, student can conveniently carry out various common control, experiment and test of hydraulic transmission. It can make the student or engineers understand the internal principle, structure and working processing of oil-way and hydraulic. It is the essential instrument of hydraulic transmission teaching and hand on training.
Boundary dimension: 150Cm ( length) ×70Cm ( width )×170Cm( height)
Electrical control component composition
It is mainly consist of power supply portion, oil-way protection unit, experiment bench protection unit, relay control unit, button and other control component.
Electrical control component introduction
Power supply portion: input voltage: AC220V, 50HZ
      Output voltage: AC24V
2.Replay control unit
Relay control unit, its function is the same as electrical control system basic control function. It is consist of control power supply hanging box, button hanging box, replay indicator light hanging box.
Relay control system include two independent control mode, when the operator use the mode one, press the “reversingⅠ” or “ normally open starting” , it will has signal ( travel switch NO(NO=normally open) contact will close), then the “ output Ⅰ” of corresponding solenoid valve group one will output, corresponding output indicator light up. Press the “reversingⅡ” or “ NC(NC=normally close) stopping” , it will has signal ( travel switch NC(NC=normally close) contact open), then the “ output Ⅱ” of corresponding solenoid valve group one will output, corresponding output indicator light up, at the same time, “output Ⅰ” will stop the output, the output indicator light will turn off, that is “ output Ⅰ” and “ output Ⅱ” are interlocking. It is mainly because of the two magnet of double solenoid directional valve can’t power on at the same time ( remark: the two electromagnet of double solenoid directional valve must connect to the “ output Ⅰ” and “ output Ⅱ” of the same solenoid valve group), press the “ stop button” or “NC(NC=normally close) stopping” it will have signal, then the “ output Ⅰ” and “ output Ⅱ” will stop output.
The control mode of group two is same as the above description.
When the operator using the control system, operator only need to power on the power supply, connect the input and output to corresponding location, the equipment will carry out control operation.
3. Oil pump motor and regulator circuit
1. Function introduction
Due to the experiment workbench can demonstrate various oil circuit, it has features like wide pressure range of circuit and requiring different flow and so on, therefore, in order to fully meet requirements of experiment demonstration, oil pump driving motor adopts small size DC shunt excitation motor and speed controller of DC motor.
2. Technical data of DC motor:
Motor model: YET-80102      Rated current: 2A
Rated power: 400W           Rated voltage: AC220V
Speed adjustable range: 0~1500rm
3. Technical data of DC motor regulator:
Input voltage: AC220V
Output voltage: DC 0 - 220V
Transparent Hydraulic Valve Configuration
NO Name Quantity
1 Hydraulic Pump station Dragging DC motor 1
Specialized DC power supply and speed
regulation control circuit
High precision digital tachometer
Pressure meter
Gear oil pump
Oil tank
Overflow valve
Oil filter and temperature level gauge
2 Double-acting oil cylinder 2
3 Spring return oil cylinder 1
4 Booster-type Pressure oil cylinder 1
5 One-way valve 2
6 Hydraulic control one-way valve 2
7 Overflow valve 2
8 Throttle valve 1
9 Speed control valve 2
10 Sequence valve 2
11 Reducing valve 1
12 2/2 solenoid directional valve 1
13 Two position four way solenoid directional valve 2
14 ”O” type three position four way solenoid directional valve 1
15 H” type three position four way solenoid directional valve 1
16 “M” type three position four way solenoid directional valve 1
17 Two position four way travel position selector valve 1
18 Three position five way manual position selector valve 1
19 Pressure relay 1
20 Pressure meter 2
21 Travel switch 4
22 T connector 2
23 Four way connector 2
24 hydraulic tube 40
25 Auxiliary oil tank 1
