1. Product Introduction
1.1 Product Description

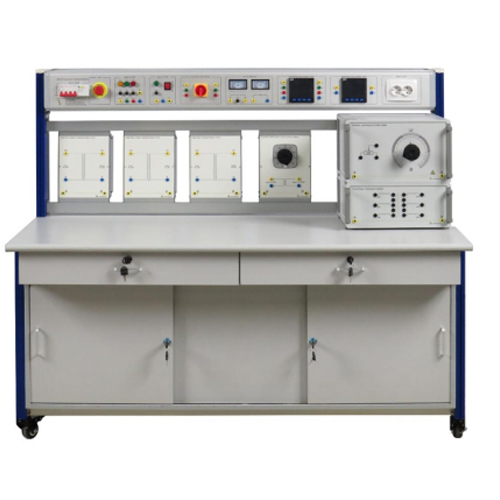

This product is a modular electrical teaching experiment system suitable for teaching and practical training in electrical engineering, automation control, and related majors. The system adopts a layered structure design, including a power supply box, module area, desktop cabinet, and multiple independent chassis. It supports various electrical experiments and measurement functions and has good expandability and safety.
1.2 Product Features
Modular Design: Each functional unit is an independent module, facilitating installation, replacement, and expansion.
Safe and Reliable: Equipped with multiple safety protections including a leakage current circuit breaker, emergency stop switch, and grounding socket.
Multi-functional Integration: Supports three-phase and single-phase power output, voltage and current measurement, transformer experiments, resistive load adjustment, and other experimental functions.
Intuitive Operation: Each unit is equipped with indicators and independent switches, making the status clear and operation simple.
Complete Support: Provides various test leads, measuring instruments, and transformer kits to meet diverse experimental needs.
2. Technical Specifications
2.1 Basic Technical Parameters
Working power supply    Three-phase five-wire AC 380V ±10% 50Hz
2.2 Equipment External Parameters
Dimension    1605mmX800mmX1335mm
Weight    ≤200kg
3. Product Introduction
3.1 Main Body of the Product
Number    Name    Quantity
1    Power Supply Box    1
2    Module Components    1
3    Chassis Components    2
4    Desktop Cabinet    1
3.2 Product Module Section
Number    Name    Quantity
1    Single-phase isolation transformer    1
2    Single-phase toroidal transformer    1
3    Single-phase transformer    1
4    Single-phase autotransformer    1
3.3 Power Supply Box Section
Number    Name    Quantity
1    4P Circuit Breaker    1
2    Emergency Stop Switch    1
3    AC400V Output Unit    1
4    AC230V Output Unit    1
5    Three-Phase Switching Unit    1
6    AC Voltmeter & Ammeter    1
7    Three-Phase Multifunction Unit    1
8    Single-Phase Multifunction Meter Unit    1
9    Socket    1
3.4 Chassis Section
Number    Name    Quantity
1    Resistive load chassis    1
2    Three-phase transformer chassis    1
3.5 Accessories
Number    Name    Quantity
1    Digital Multimeter    1
2    Insulation Resistance Meter    1
3    UI Transformer Kit    1
4    EI Transformer Kit    1
5    4mm electrical safety connection cable (Double-ended, Blue)    5
6    4mm electrical safety connection cable (Double-ended, Green)    5
7    4mm electrical safety connection cable (Double-ended, Red)    5
8    4mm electrical safety connection cable (Double-ended, Two-color)    5
9    4mm electrical safety connection cable (Double-ended, Yellow)    5
10    Power Cord    1
11    4mm electrical safety connection cable (Plug-in, Two-color)    2
12    Mini Thermometer    2
13    Fuse (5A)    5
14    U-Bridge Connector (4mm Black)    5
4. Product Teaching Experiment List
(1) Use of Three-Phase Transformers
(2) Use of Resistive Load Chassis
(3) Use of Single-Phase Isolation Transformers
(4) Use of Single-Phase Transformers
(5) Use of Single-Phase Autotransformers
