ZM6309 Training Model For Cold Storage Practice Refrigeration Laboratory Equipment Educational Equipment Teaching EquipmentI. Overview
The "Comprehensive Training Device for Cold Storage System" is suitable for the installation and maintenance of electromechanical equipment, electromechanical technology applications, electrical operation and control, electrical technology applications, motors and electrical appliances, refrigeration and air conditioning equipment in colleges, secondary vocational schools and undergraduate colleges. "Refrigeration and Air Conditioning Machine Equipment", "Refrigeration and Air Conditioning Device Installation, Operation and Maintenance", "Refrigeration and Air Conditioning Automation", "Air Conditioning Technology and Application", "Refrigeration Engineering and Operation Management", "Refrigeration Refrigeration Technology" and other courses The actual training teaching and the identification and assessment of intermediate and advanced workers.
II. Device characteristics
1. Strong comprehensiveness: the whole set of real equipment integrates the refrigeration system, electrical control system and fault system of the refrigerator, the system is real and complete, the structure is clear and compact, and meet the requirements for practical training
2. Strong intuition: The device adopts an open design, the control circuit and refrigeration piping system are directly displayed, and the device is affixed with a name logo, students can intuitively recognize various devices
3. Practical training: The table body is equipped with a fault device, which can realize the electrical control fault setting, which is conducive to carrying out skill identification and assessment work
4. Complete safety protection: with voltagetype leakage protection, currenttype leakage protection, overcurrent protection, overload protection, grounding protection, which can effectively protect people and equipment
III. Technical performance
1. Input power: threephase fourwire (or threephase fivewire) ~ 380V ± 10% 50Hz
2. Working environment: temperature 10 ℃ ～ + 40 ℃ relative humidity ＜ 85% (25 ℃) altitude <4000m
3. Device capacity: <7kVA
4. Refrigerant: R22
5. Cooling capacity: 5.3kW
6. Weight: 300kg
7. Dimensions (approximately): 100cm × 100cm × 220cm
IV. The basic configuration and functions of the training device
The training device is mainly composed of a control screen, a training table, an aircooled refrigeration unit and an assembled cold storage, etc.
1. Power control section
AC power supply: Provides threephase AC power required for the operation of the control panel, which can be controlled by the main power switch. Equipped with a pointer type AC voltmeter, the input grid voltage value can be indicated through the switch
2. Measuring instruments
"Pointer voltmeter: 0 ～ 450V, accuracy 2.5
"Vacuum pressure gauge: 0.1 ～ 1.5MPa
"Vacuum pressure gauge: 0.1 ～ 3.5MPa
"Digital display thermometer: PT100 sensor, measuring range 50 ~ +150 ℃
3. One machine and two libraries electrical control assessment board
The electrical control schematic diagram of the cold storage is printed on the panel, and corresponding test points are provided to facilitate students to analyze and measure.
4. Process board of refrigeration system with one machine and two warehouses
The panel is printed with the flow chart of the real refrigeration system of the cold storage, equipped with 2 temperature controllers (measuring and controlling the temperature of the high temperature storage and low temperature storage respectively), and a dedicated defrosting timer for the cold storage (used in low temperature storage)
6. Aircooled refrigeration unit
Contains 2 semihermetic refrigeration compressors, aircooled condensers, oil separators, sight glasses, liquid reservoirs, dryer filters, 2 liquid supply solenoid valves, 2 thermal expansion valves, back pressure valves (evaporation pressure adjustment) Valve), check valve (singlephase valve), 5 hand valves, etc.

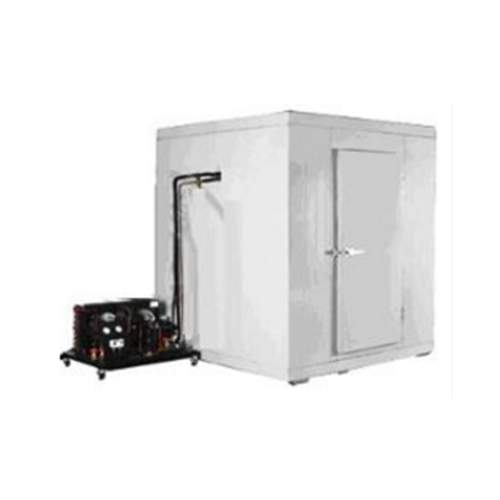

7. Assembled cold storage
The storage body adopts an assembled cold storage, the size of the storage body is 100 × 100 × 220cm, (above 10 ℃), and one storage door is moved. Inside is equipped with ceilingmounted cooler, defrosting heating wire, etc., and there is a water outlet outside the cold storage.
8. Training table
The training table is made of aluminum profile, and the table is fireproof, waterproof, wearresistant highdensity board, with a solid structure and beautiful appearance. The desktop is used to install the power control screen and provide a spacious and comfortable work surface. The training table is also equipped with four universal wheels, easy to move and fix
V. Practical training projects
1. Understanding the cold storage system
2. Operational training of the electrical control system of the refrigerator
3. Debugging and protection technology of refrigeration system working conditions
4. Training and testing of electrical faults in cold storage
