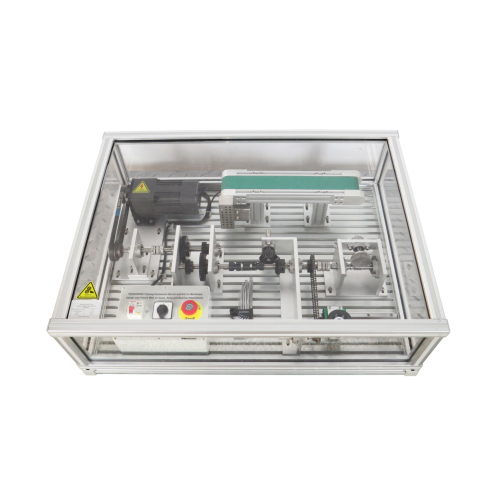

Training Equipment (Benchand Kit) for Machinery Designand Theory With All Gears. Beltsand Bearing Attachments Mechanical Trainer Teaching Equipment Vocational Training Equipment

TB240425S02 Training Equipment (Benchand Kit) for Machinery Designand Theory With All Gears. Beltsand Bearing Attachments Mechanical Trainer Teaching Equipment Vocational Training Equipment
I. Product Introduction
1.1 Product Description
Through practical training, you can master the changes in transmission direction and transmission speed in chain transmission, belt transmission, gear transmission, coupling and combined transmission in mechanical transmission, and better understand the principles of mechanical transmission.
1.2 Product Features
The training table uses an aluminum profile base plate structure, and the components are installed on the base plate in an orderly manner.
Modular structure, complete transmission structure, can be combined at will, and realize a variety of mechanical transmission,
II. Technical Specifications
(1) Input power: single-phase, three-wire, 220V±10%, 50Hz
(2) Motor power: 90W
(3) Dimensions: 850mm×630mm×285mm
(4) Machine weight: 40kg
(5) Working conditions: ambient temperature -10℃ to +40℃, relative humidity <85% (25℃)

III. Product Composition

IV.Experiment list
Experiment 1 V-belt drive experiment
Experiment 2 Chain drive
Experiment 3 Cylindrical gear transmission
Experiment 4 Bevel gear transmission
Experiment 5 Rack and pinion transmission
Experiment 6 Worm gear transmission
