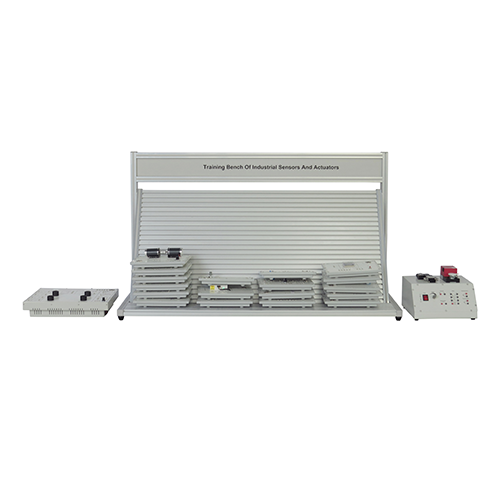

ZE3439 Training Bench of  Industrial Sensors and Actuators Didactic Equipment School Equipment Training Electrical Training Equipment
I.Product Overview
1.1 Overview
The sensor training equipment has a wide range of applications, strong intuitiveness, flexible methods, and modular structure. It uses actual sensor elements from industrial production, allowing students to understand the actual situation of modern production testing and control through learning and actual assembly. The training table includes temperature module, photoelectric sensor module, strain gauge module, air flow sensor module, air pressure sensor module, inductance sensor module, Hall sensor module, speed sensor module, humidity sensor module, ultrasonic sensor module, timing counter module, gain adjustment amplifier module, amplifier module, oscillation circuit and filter circuit module, low-pass filter module, sampling and holding circuit module, oscillation circuit module, power amplifier module, power supply module, and output device, so that students can understand the working principles and usage methods of different types of sensors, learn more practical knowledge and hands-on ability, open up their thinking, improve their practical ability and actual operation ability, so that students can directly carry out production internships after graduation and shorten production time.
1.2 Features
The device meets safety requirements and is helpful for a preliminary understanding of sensors.
II. Performance Parameters
1. Input power: single-phase three-wire 127V±10%, 60Hz
2. Working environment: temperature -10℃～+40℃, humidity <85% (25℃)

III. Components List and Detailed Introduction
3.1 Main part
3.2 Components List
3.3 Accessories
IV. Experimental List
Experiment 1 Full-bridge voltage regulator circuit
Experiment 2 Voltage conversion frequency unit
Experiment 3 Frequency conversion voltage unit test
Experiment 4 Voltage conversion current unit test
Experiment 5 Current conversion voltage unit test
Experiment 6 Output device unit test
Experiment 7 J-type thermocouple temperature acquisition unit test
Experiment 8 K-type thermocouple temperature acquisition unit test
Experiment 9 Photoelectric sensor test
Experiment 10 Photodiode test
Experiment 11 Photocell unit test
Experiment 12 Phototransistor test
Experiment 13 Integrated temperature sensor
Experiment 14 Strain gauge module test
Experiment 15 Air flow sensor test
Experiment 16 Air pressure sensor test
Experiment 17 Inductance sensor test
Experiment 18 Hall sensor test
Experiment 19 Speed sensor module test
Experiment 20 Humidity sensor test
Experiment 21 Ultrasonic sensor module test
Experiment 22 Timing counter module test
Experiment 23 Gain amplifier circuit test
Experiment 24 Measurement amplifier module test
Experiment 25 Oscillation circuit test
Experiment 26 Filter circuit test
Experiment 27 Low-pass filter module test
Experiment 28 Maintain sampling module test
Experiment 29 Wien bridge oscillation circuit test
Experiment 30 RC oscillation circuit test
Experiment 31 Power amplifier test
