1. Product Introduction
1.1 Product Description

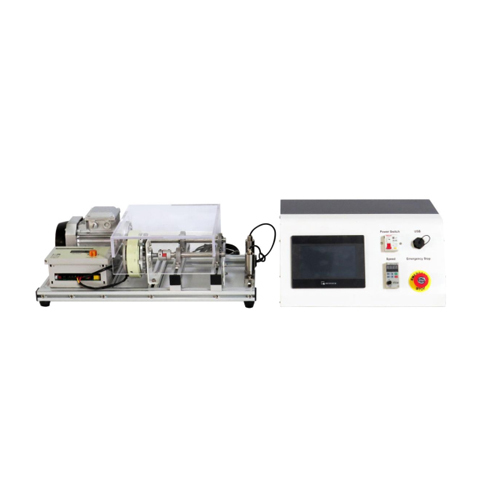

The training laboratory bench can be used for practical courses in the disciplines of mechanical parts, technical machinery, service, repair/assembly, vibration diagnostics, etc. The stand includes V-belt and gear pulley sets, chain drive sprockets, V-belts and wedge sprockets. The bench includes multiple sets of V-belts and gear drive pulleys, chain drive sprockets, chains, gears. The bench is equipped with sensors to monitor the data generated by gear vibration.
The included measuring tools (digital calipers and clock micrometers on magnetic stands) enable the experimenter to master the skills of checking the correctness of installation, alignment and parallelism of shafts, axial and angular misalignment control.
1.2 Product Features
1. The bench can study the operation of mechanical gears in idle mode and under different speed loads.
2. The equipped sensors can monitor some data of various speeds, displacements, accelerations.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: Single phase, three wires, AC220V, 50Hz
2.2 Dimensions and weight
Dimensions: 830mm×680mm×370mm
Weight: 52kg
3. Product component names and function introduction
3.1 Product main body

No.

Name

1

Three-phase asynchronous motor

2

Magnetic powder brake

3

Bevel gear

4

Protective cover

5

Sensor

6

Magnetic powder brake controller

7

Coupling

8

Driven shaft

9

Driving shaft

10

Data acquisition module


3.2 Product electrical part

No.

Name

1

Touch screen

2

Circuit breaker

3

USB output

4

Inverter

5

Emergency stop knob


3.3 Product accessories

No.

Name

1

Dial indicator

2

Vernier caliper

3

Bevel gear

4

Bearing

5

Expansion sleeve

6

Power cord

7

Angle ruler

8

Hexagonal wrench

9

Steering wheel

10

Spur gear

11

Chain

12

Sprocket gear

13

V-belt

14

Belt gear

15

Synchronous belt

16

Synchronous gear

17

Brake pad

18

Load block

19

Eccentric sleeve

20

Toolbox

4. Product Configuration List

No.

Name

Qty

1

Three-phase asynchronous motor

1

2

Magnetic powder brake controller

1

3

Magnetic powder brake

1

4

Bevel gear

10

5

Drive shaft

1

6

Driven shaft

1

7

Coupling

2

8

Sensor

2

9

Circuit breaker

1

10

Inverter

1

11

Emergency stop knob

1

12

USB output

1

13

Digital indicator

1

14

Vernier caliper

1

15

Tightening sleeve

2

16

Power cord

1

17

Angle ruler

1

18

Hexagonal wrench

1

19

Steering wheel

2

20

Spur gear

3

21

Chain

2

22

Sprocket gear

3

23

V-belt

2

24

Belt gear

3

25

Synchronous belt

2

26

Synchronous gear

3

27

Brake pad

1

28

Eccentric sleeve

3

29

Tool box

1


5. Experimental Instructions
5.1 Sprocket installation process
5.2 Pulley installation process
5.3 Synchronous wheel installation process
5.4 Spur gear installation process
5.5 Brake disc installation process
5.6 Data acquisition experiment
5.7 Motor forward and reverse rotation
5.8 Braking experiment of magnetic powder brake controller
