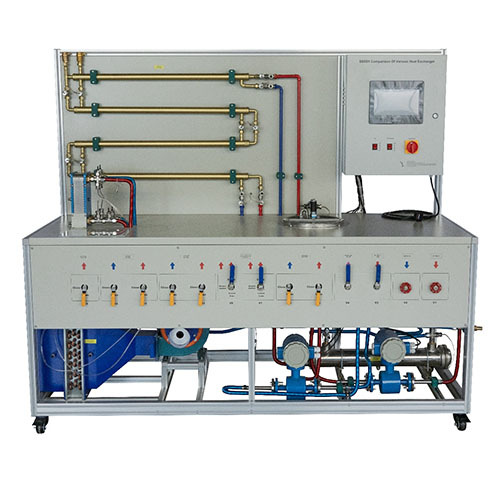

ZF1115A Trainer for Various Heat Exchangers Thermal Lab Equipment Teaching Equipment Didactic EquipmentSpecification
[1] examination and comparison of various heat exchanger types
[2] five different types of heat exchangers included in the scope of delivery
[3] finned heat exchanger with fan
[4] operating mode (parallel flow or counter flow) selectable via valves
[5] flow rates adjustable via valves
[6] electromagnetic flow meter
[7] digital displays for temperature, pressure differences and flow rate
[8] hot & cold water benches available for
independent operation
[9] water/steam heat exchanger unit and electrical steam
Generator available for further experiments
Technical Data
Plate heat exchanger, 10 plates
- heat transfer surface area: approx. 0,26m²
- capacity: 15kW
Tubular heat exchanger
- heat transfer surface area: 0,1m²
- heat transfer surface area (coil): 0,17m²
Shell and tube heat exchanger
- capacity: 13kW
Finned cross-flow heat exchanger
- heat transfer surface area: approx. 2,8m²
- max. flow rate fan: 780m³/h
- max. pressure difference fan: 430Pa
Jacketed vessel with stirrer
- heat transfer surface area (vessel): 0,16m²
- heat transfer surface area (coil): 0,17m²
Measuring ranges
- differential pressure air: 0...10mbar
- differential pressure water: 0...1000mbar
- flow rate: 0...3m³/h
- temperature: 0...100°C
Dimensions and Weight
LxWxH: 2010x800x1760mm
Weight: approx. 300kg
