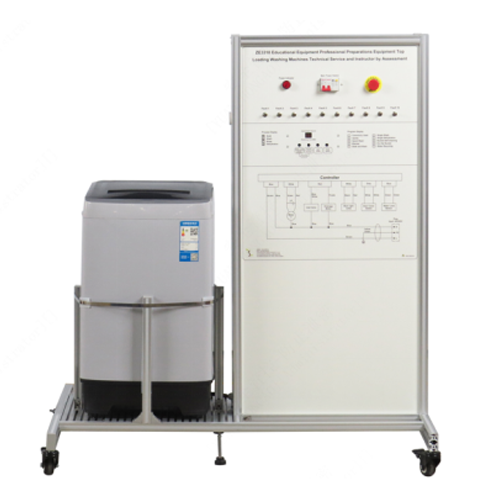

ZE3318 Top Loading Washing Machine Maintenance and Assessment Trainer Teaching Workbench Equipment Educational Technology Electrical Training Equipment1. Product Introduction
1.1 Product Description
This training device is a pulsator training module, with the same functions as an actual washing machine. This product can simulate various washing machine malfunctions to meet various experimental needs.
1.2 Product Feature
1. This training device is specifically developed for the practical application of washing machine control technology and can be used flexibly according to training needs.
2. It adopts a standardized modular design, making it easy to place.
3. It uses a switch to control malfunctions, ensuring safety and convenience.
2. Technical Specification
2.1 Technical Parameter
Power Supply Parameters: Single-phase three-wire AC 220V ±5% 50Hz
2.2 Dimension and Weight
Dimensions: 1310mm*905mm*1490mm
Weight: <50kg
3. Product Component Name and Function
3.1 Main Body of the Product
|
NO.
|
Name
|
Qty.
|
|
1
|
Control System
|
1
|
|
2
|
Washing Machine
|
1
|
|
3
|
Washing Machine Control Panel
|
1
|
|
4
|
Frame
|
1
|
|
5
|
Swivel wheel
|
4
|
3.2 Product Control Section
|
NO.
|
Name
|
Qty.
|
|
1
|
Main power switch
|
1
|
|
2
|
Emergency stop button
|
1
|
|
3
|
Indicator light
|
1
|
3.3 Product Accessories
|
NO.
|
Name
|
Qty.
|
|
1
|
5A fuse (5*20)
|
5
|
|
2
|
French/European power cord, European plug (2-prong 16A, 10A with triple-terminal)
|
1
|
|
3
|
Washing machine water-tap connector
|
1
|
|
4
|
Cover plate
|
1
|
4. List of Product Teaching Experiments (See Experiment Manual for details)
(1) Washing Machine Fault Test Experiment
