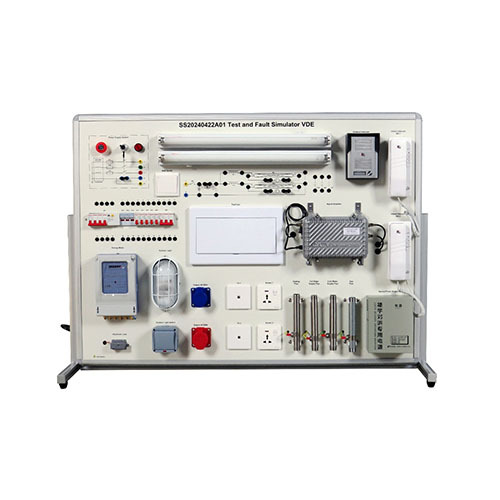

SS20240422A01 Test and Fault Simulator VDE Building Automation Trainer Educational Equipment Didactic Equipment1. Product Introduction
1.1 Product Description
The teaching system "Test and Fault Simulator VDE" is a compact simulator for typical household electrical systems with various circuits (e.g., first floor, second floor) and AC and DC power supplies. The fault simulator can be used to reproduce typical fault sources and analyze them using industrial test equipment.
The model includes a complete residential service entrance box with fuses, residual current circuit breakers, doorbell transformers and ammeters as well as various installation components for power supply voltage and signal transmission. Consumers, counters and potential compensation equipment (including communication technology) complete the system.
1.2 Product Features
1. The product has excellent electrical safety performance, and some components have adopted excellent waterproof design and grounding reliability.
2. The product has an elegant design and a simple structure.
3. The product adopts anti-corrosion measures and is made of solid and durable materials, which greatly extends the service life of the product.
4. The product has rich experimental modules and can complete test tasks under various conditions.
2. Technical specifications
2.1 Technical parameters
Power supply parameters: three-phase AC220V
Delixi circuit breaker: 4P; 16A; with leakage protection
Fuse core: 3A
Interphone power supply: 12V/12W
LED explosion-proof lamp: 12W LED light source
Electric lock: 12V
Fluorescent lamp: 0.6m; 20W
Working environment conditions: Ambient temperature 10℃～30℃; Relative humidity <75% (25℃)
2.2 Dimensions and weight
Dimensions: 1640mm×450mm×1100mm
Weight: <79kg
3. Product component names and function introduction
3.1 Product main body
|
No.
|
Name
|
|
1
|
Emergency stop switch
|
|
2
|
Key switch
|
|
3
|
Power indicator light
|
|
4
|
TN-S system connection U-shaped plug
|
|
5
|
Wall switch
|
|
6
|
Circuit breaker with leakage protector
|
|
7
|
Fuse
|
|
8
|
1P and 3P circuit breakers
|
|
9
|
Electric energy meter
|
|
10
|
Electric door lock
|
|
11
|
Explosion-proof lamp
|
|
12
|
Simulation fault setting box
|
|
13
|
Industrial socket single-phase AC220V
|
|
14
|
Waterproof switch
|
|
15
|
Industrial socket three-phase AC380V
|
|
16
|
Wired communication socket
|
|
17
|
Wall three-hole socket
|
|
18
|
Grounding pipe
|
|
19
|
Intercom power supply
|
|
20
|
Wired signal amplifier
|
|
21
|
Telephone
|
|
22
|
Doorbell
|
|
23
|
Fluorescent lamp
|
3.2 Product accessories
|
No.
|
Name
|
|
1
|
Industrial socket
|
|
2
|
Digital multimeter
|
|
3
|
Fuse insurance
|
|
4
|
Black 4mm safety electrical cable
|
4. Product Configuration List
|
No.
|
Name
|
Qty
|
|
1
|
Circuit breaker (with leakage protection)
|
1
|
|
2
|
Fuse protection device
|
3
|
|
3
|
Circuit breaker
|
6
|
|
4
|
Wall switch
|
1
|
|
5
|
Fluorescent lamp
|
2
|
|
6
|
Doorbell module
|
1
|
|
7
|
Telephone
|
2
|
|
8
|
Electricity meter
|
1
|
|
9
|
Door lock
|
1
|
|
10
|
Explosion-proof lamp
|
1
|
|
11
|
Waterproof switch
|
1
|
|
12
|
Emergency stop switch
|
1
|
|
13
|
Key switch
|
1
|
|
14
|
Wall socket
|
2
|
|
15
|
Wired signal socket
|
2
|
|
16
|
Single-phase AC220V industrial socket
|
1
|
|
17
|
Three-phase AC380V industrial socket
|
1
|
|
18
|
Wired amplifier
|
1
|
|
19
|
Interphone power supply
|
1
|
|
20
|
Grounding pipes of different materials
|
4
|
|
21
|
Digital multimeter
|
1
|
|
22
|
Fuse insurance
|
3
|
|
23
|
Industrial female plug
|
1
|
|
24
|
Black 4mm safety electrical cable
|
2
|
5. Product teaching experiment list (see the experiment guide for details)
(1) Simulate the short circuit F1 fault of the circuit
(2) Simulate the F2 fault of the fluorescent lamp circuit
(3) Simulate the F3 fault of the fluorescent lamp circuit
(4) Simulate the F4 fault of the fluorescent lamp circuit
(5) Simulate the F5 fault of the explosion-proof lamp circuit
(6) Simulate the F6 fault of the outdoor waterproof socket circuit
(7) Simulate the F7 fault of the indoor socket circuit
(8) Simulate the F8 fault of the doorbell system circuit
(9) Simulate the F9 fault of the outdoor waterproof socket circuit
(10) Connect different capacitors in parallel to the fluorescent lamp circuit to improve the power factor of the load circuit
