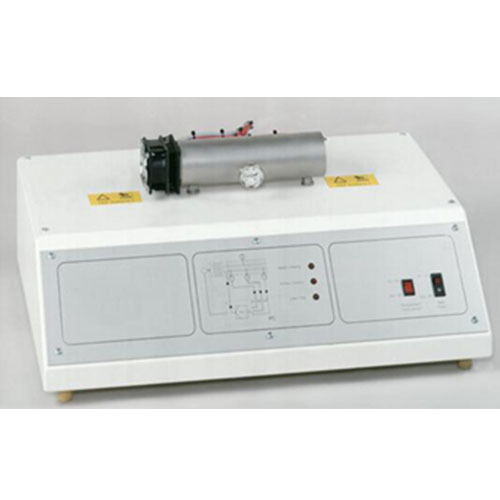

ZM7148 Temperature Control Training System Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipmentexperimental unit for control engineering experiments
temperature control of a heated metal bar
heating and cooling by Peltier element
temperature sensors at 3 different points along axis of bar to establish thermal lags
process schematic on front panel
Technical Data
Heated bar: DxL: 20x200mm, aluminium
Peltier element
- power consumption depending on temperature
power at 300K: 38,2W
power at 50°C: 44,3W
- operated by DC voltage
Fan
- power consumption: 2W
- max. flow rate: 40m³/h
Temperature sensor: 0...100°C
Thermometer: 0...100°C
Temperature control range: 0...100°C
- process schematic with controller type selection (manual, continuous controller, two- or three-point controller, programmer)
- time functions
- simulation function
- disturbance variable input
Dimensions and Weight
LxWxH: 600x450x260mm
Weight: approx. 16kg
