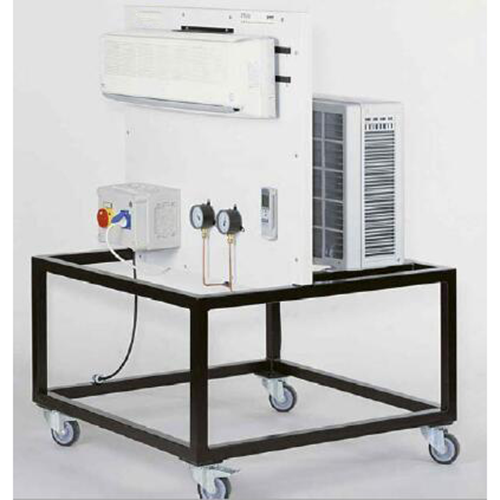

Spit System Air Conditioner Teaching Equipment Refrigerator Trainer Vocational Training Equipment

SR2026 Spit System Air Conditioner Teaching Equipment Refrigerator Trainer Vocational Training Equipment
Brand: ShouldShine
Model: SR2026
Learning Objectives / Experiments
- design and operation of a split system air conditioner
- 6 operating modes
* cooling
* dehumidifying (slight cooling)
* heating
* ventilation (only the fan of the inner unit)
* automatic (operating mode suitable for the room temperature)
* test of cooling function
- 3 additional functions
* "sleep" (switch-off after several hours)
* "swing" (air outlet lamella position)
* timer for switching on and off
- remote control functions

Learning Objectives / Experiments
- design and operation of a split system air
conditioner
- 6 operating modes
* cooling
* dehumidifying (slight cooling)
* heating
* ventilation (only the fan of the inner unit)
* automatic (operating mode suitable for the room temperature)
* test of cooling function
- 3 additional functions
* "sleep" (switch-off after several hours)
* "swing" (air outlet lamella position)
* timer for switching on and off
- remote control functions
Technical Data
Split system air conditioner
- power consumption: approx. 1,7kW
- cooling capacity: approx. 3,3kW
- heating capacity: approx. 3,4kW
- max. volumetric air flow rate (inner unit):
approx. 420m³/h
- dehumidification (inner unit): approx. 0,8L/h
- timer: 24h
Measuring range
- pressure (low and high pressure): -1...40bar
Dimensions and Weight
LxWxH: 1000x1000x1500mm
Weight: approx. 80kg
Required for Operation
230V, 50Hz, 1 phase
