SR2103E Solar Thermal Training Equipment Didactic Equipment Vocational Training Equipment Renewable Training Equipment

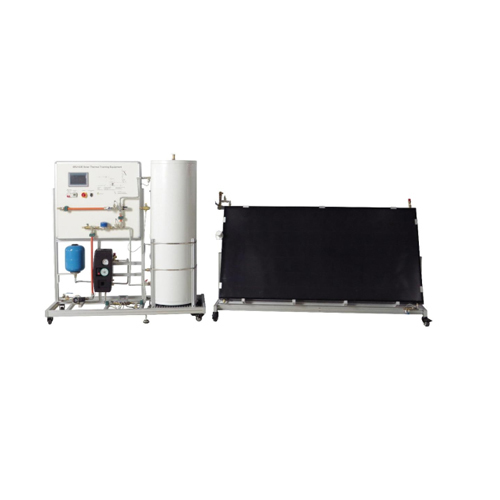

Name: Solar Thermal Training Equipment Didactic Equipment Vocational Training Equipment Renewable Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: SR2103E
Availability: InStock
Rating: 5 (1 reviews)

1. Product Introduction
1.1 Product Description
The solar collector is an experimental device for studying solar heat. It can measure and collect temperature, flow rate, pressure and other data and realize data communication. The device supports local and software remote operation. It can simulate the whole process of domestic hot water production, storage and transportation.
1.2 Product Features
1. Experimental device for studying solar heat (single solar water heater 200L, 2.2m² collector)
2. Local and software remote operation
3. Multiple measurement data collection (temperature, flow rate, pressure, etc.) and data communication.
4. Technical economic and environmental analysis.
5. Thermal balance, size and rationality of components.
6. Electrical wiring and pipe connection.
7. Movable solar collector.
2. Technical specifications
2.1 Technical parameters
Three-speed circulation booster pump: automatic start and stop, DC24V, 50~85W, 25~35L/min
Temperature transmitter: input DC24V, -50~150℃, output 4~20mA
Flat plate collector (blue film): absorption area 2 square meters 1X2m
Water storage tank: 150L
2.2 Dimensions and weight
Dimensions1:1630mm*680mm*1840mm
Weight1:156kg
Dimensions2:2230mm*830mm*1450mm
Weight2:127kg

3. Product component
3.1 Product main part

No.	Name
1	Touch screen
2	Circuit breaker
3	Electric energy meter
4	Load switch
5	Network cable interface
6	System schematic diagram
7	Domestic water switch valve
8	Mixed water outlet temperature sensor
9	Constant temperature mixing valve
10	Cold water drain valve
11	Cold water meter
12	Cold water temperature sensor
13	Expansion tank
14	Circulation safety valve
15	Cold water inlet valve, filter
16	Cold water check valve
17	Cold water booster pump
18	Solar working pump station (including circulation pump, pressure gauge, check valve)
19	Heat meter
20	Cold water inlet safety valve
21	Circulation inlet switch valve
22	Water tank outlet temperature sensor
23	Water tank exhaust valve
24	Water tank
25	Collector-exhaust valve
26	Collector-water outlet manual switch valve
27	Light intensity sensor
28	Collector-water outlet temperature sensor
29	Solar collector
30	Collector-safety valve
31	Collector-water inlet temperature sensor
32	Collector-water inlet manual switch valve
33	Check valve
34	Pressure gauge
35	Circulation pump
36	Circulation pump flow adjustment knob
37	Manual valve 1
38	Manual valve 2
39	Manual valve 3
40	Circulation fluid discharge port
41	Circulation fluid filling port
42	Expansion tank interface
43	Safety valve

3.2 Product accessories

No.	Name
1	Bellows
2	Extension cable
3	Network cable
4	Industrial waterproof plug
5	Software USB disk

4.Product Configuration List

No.	Name	Quantity
1	Touch screen	1
2	Circuit breaker	1
3	Electric energy meter	1
4	Load switch	1
5	Network cable interface	1
6	System schematic diagram	1
7	Cold water meter	1
8	Expansion tank	1
9	Check valve	4
10	Booster pump	1
11	Heat meter	1
12	Mixing valve	1
13	Exhaust valve	3
14	Water tank	1
15	Manual switch valve	9
16	Light sensor	1
17	Solar collector	1
18	Pressure gauge	1
19	Circulation pump	1

5. Product teaching experiment list
(1) Bellows connection experiment
(2) Water storage tank water supply experiment
(3) Solar collector water supply experiment
(4) Booster pump boosting experiment
(5) Water outlet temperature experiment
(6) Manual operation of solar working pump station
(7) Self-operation of water tank heater experiment
(8) Automatic mode circulation experiment
(9) Sensor data operation
(10) Drainage experiment
