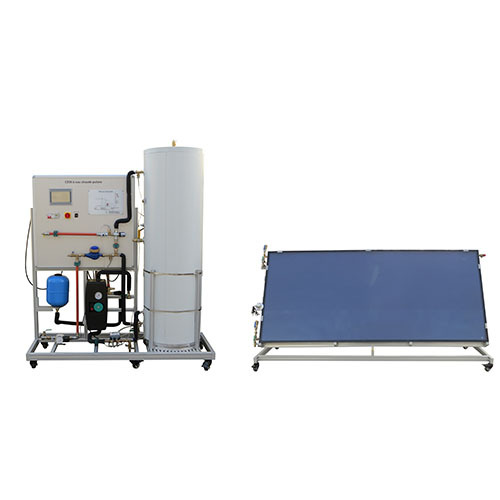

ZM2134 Solar Collector Trainer Didactic Equipment Vocational Education Equipment Renewable Training Equipment

1.Product overview
1.1Equipment features:
Experimental installation for research on solar heat (single solar water heater 200L, 2.2m² collector)
Local and software remote operation
Various measurement data acquisition (temperature, flow rate, pressure, etc.) and data communication.
Techno-economic and environmental analysis.
Thermal balance, size and rationality of components.
Electrical wiring and plumbing connections.
Movable solar collectors.
1.2 Function description:
The system can study the production of domestic hot water via solar heat (flat plate collectors).
Realize the whole process of domestic hot water production, storage and transportation.
1.3 Measurement and production monitoring.
2. Performance parameters
(1) Input power supply: AC220V 50Hz
(2) Weight: about 200kg
(3) Working conditions: ambient temperature 10 ℃ ~ 30 ℃ relative humidity <75% (25 ℃)
(4) Size: measuring and monitoring unit 1600×600×1900
Solar production unit 2650×900×1260
3. Complete the training content
Experiment 1: Identify System Components and Principles
Experiment 2: System Function Analysis
Experiment 3: Measurement and Setup (Solar Circuit)
Experiment 4: Backup Energy Research
