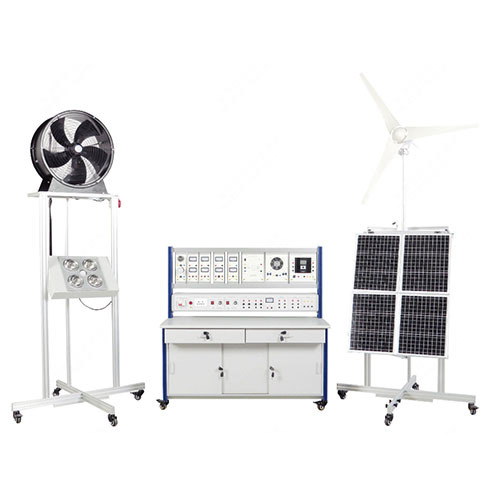

ZM2119 Solar and Wind Trainer Didactic Equipment Vocational Education Equipment Renewable Training Equipment
1. Product Introduction
1.1 Product Description
The ZM2119 wind-solar hybrid training device is an advanced teaching tool designed for education and training. It aims to help students deeply understand the principles and processes of wind power generation and solar power generation through intuitive simulation demonstrations. The device can accurately simulate the wind power generation system and solar power generation system in the real world, allowing students to learn and conduct experimental operations in a safe and controllable environment.
In the ZM2119 wind-solar hybrid training device, the wind turbine is driven by a blower to simulate the real wind power generation process. Students can observe the effect of different wind speeds on power generation efficiency by adjusting the speed of the blower. The solar panel is illuminated by a halogen lamp to simulate the effect of sunlight on the photovoltaic panel. By adjusting the light intensity and angle, students can study the output characteristics of photovoltaic panels under different lighting conditions, thereby understanding the working principle of solar cells and their performance in different environments.
1.2 Product Features
(1) Structural design: The training table adopts an aluminum profile column frame structure to ensure overall stability and durability. The measuring instruments and training power supply are built-in and integrated, which not only saves space but also improves the convenience of use. The bottom is equipped with universal wheels, which makes the coordination between the units more flexible, very convenient to use, and not easy to damage.
(2) Complete configuration: The experimental circuits and devices are fully configured and can be used in combination to complete the training content of various subjects. Whether it is wind power generation or solar power generation experiments, they can be easily handled. This flexibility allows teachers to choose different experimental projects according to teaching needs and enrich the teaching content.
(3) Safety protection system: The ZM2119 wind-solar hybrid training device has a good safety protection system. All circuits and devices have been strictly designed and tested to ensure that there will be no safety hazards during use. In addition, the device is also equipped with complete safety protection measures, which can automatically cut off the power in abnormal situations to protect the safety of students.
2. Technical specifications
2.1 Technical parameters
1. Input power: single-phase AC 220V±5%
2. Working conditions: temperature -10～+40℃±5% temperature ≤80℃
3. Ambient air: no corrosive, flammable gas, no large amount of conductive dust
2.2 Dimensions and weight
Dimension 1: Wind power generation device dimensions: 10*1210*2600mm.
Weight 1: About 50KG
Dimension 2: Solar power generation device dimensions: 1210*1210*2750mm
Weight 2: About 50KG
Dimension 3: Training table dimensions: 1400mm×700mm×1500mm.
Weight 3: About 150KG
3. Product component
3.1 Product main part
|
No.
|
Name
|
|
1
|
Wind-solar hybrid wind turbine and simulated light source part
|
|
2
|
Training platform part
|
|
3
|
Wind and solar energy training machine
|
3.2 Product hanging box part
|
No.
|
Name
|
|
1
|
Bulb Load Hanging Box
|
|
2-3
|
DC Current and Voltage Meter Hanging Box (50V 10A)
|
|
4
|
DC Current and Voltage Meter Hanging Box (50V 30A)
|
|
5
|
AC Current and Voltage Meter Hanging Box (250V 5A)
|
|
6
|
Inverter Box
|
|
7
|
Axial Flow Fan Box
|
|
8
|
Wind-solar hybrid controller box
|
3.3 Product power box
|
No.
|
Name
|
|
1
|
Power circuit breaker
|
|
2
|
Power indicator light and ground wire
|
|
3
|
AC220V six-hole socket
|
|
4
|
Fan power switch and speed regulator
|
|
5
|
Simulated light source power switch and regulator
|
|
6
|
Battery module
|
|
7
|
DC30V voltmeter
|
|
8
|
Photovoltaic panel output and measurement module
|
|
9
|
Wind turbine output and measurement terminals
|
3.4 The back of the hanging box
|
No.
|
Name
|
|
1
|
Simulated wind source, simulated light source power interface
|
|
2
|
Photovoltaic panel 1-4 input interface
|
|
3
|
Wind power generation input interface
|
4.Product Configuration List
|
No.
|
Name
|
Quantity
|
|
1
|
Wind-solar hybrid wind turbine and simulated light source part
|
1
|
|
2
|
Wind-solar hybrid solar panel and generator part
|
1
|
|
3
|
Wind and solar training machine
|
1
|
|
4
|
Light bulb load hanging box
|
1
|
|
5
|
DC current and voltage meter hanging box (50V 10A)
|
2
|
|
6
|
DC current and voltage meter hanging box (50V 30A)
|
1
|
|
7
|
AC current and voltage meter hanging box (250V 5A)
|
1
|
|
8
|
Inverter hanging box
|
1
|
|
9
|
Axial fan hanging box
|
1
|
|
10
|
Wind-solar hybrid controller hanging box
|
1
|
|
11
|
4mm safety connection cable 1m double-ended black
|
10
|
|
12
|
4mm safety connection cable 1m double-ended red
|
10
|
|
13
|
4mm safety connection cable 1m double-ended blue
|
5
|
|
14
|
4mm safety connection cable 1m double-ended two-color
|
5
|
|
15
|
4mm safety connection cable 1m double-ended yellow
|
5
|
|
16
|
Communication line
|
1
|
|
17
|
Fuse 5*20 5A
|
4
|
|
18
|
Fuse 5*20 10A
|
4
|
|
19
|
Fuse 6*30 30A
|
4
|
|
20
|
USB flash drive
|
1
|
|
21
|
Electrician tool kit including 17 tools
|
1
|
|
22
|
Charger
|
1
|
|
23
|
Digital multimeter UA9205
|
1
|
5. Product teaching experiment list
(1) Solar energy charging battery protection feature experiment
(2) Charger charging battery experiment
(3) Axial flow fan test experiment
(4) Inverter principle experiment
(5) Photovoltaic panel battery open circuit voltage test experiment
(6) Simulated wind power generation system experiment
(7) Photovoltaic panel battery series connection experiment
(8) Photovoltaic battery parallel connection experiment
(9) Change of light intensity to output voltage and current experiment
(10) Change of light angle to output voltage and current experiment
