Siemens Network Communication Control Training Kit Didactic Equipment Vocational Training Equipment Process Control Trainer

No.SLM-167
SLM-167 Siemens Network Communication Control Training Kit Didactic Equipment Vocational Training Equipment Process Control Trainer
Size
Size 1: Length 2130mm Width 752mm Height 2055mm Size 2: 1705mm Width 703mm Height 1736mm
Weight
Weight 1:<427kg Weight 2:<234kg
  • Siemens Network Communication Control Training Kit Didactic Equipment Vocational Training Equipment Process Control Trainer

Description

SLM-167 Siemens Network Communication Control Training Kit Didactic Equipment Vocational Training Equipment Process Control Trainer

I.Product Overview
1.1 Overview

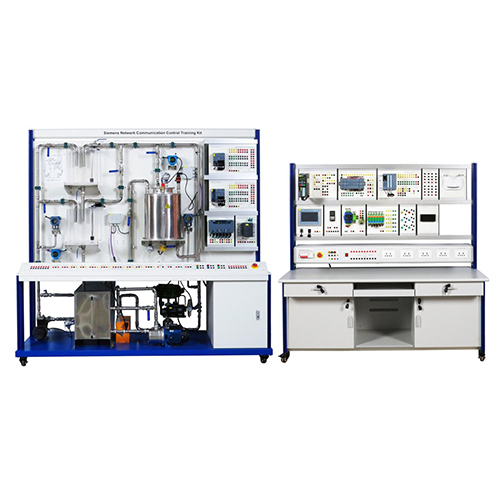

The Siemens network communication control training kit contains two parts: the actuator unit and the console.
Actuator: It is built with an aluminum alloy frame, including a water tank, a water pump, a pneumatic proportional valve, a heater, a flow sensor, a temperature sensor, a pressure sensor, etc., which can realize cascade control and PID control;
The console is also an aluminum alloy frame, including a power box, a computer, a PLC, a communication module, etc., which can hold a double-layer module hanging box unit. The PLC module wiring uses K4 terminals to transfer to the hanging box panel.
System Overview of the Siemens Network Communication Control Training Kit:
1. The system host computer uses the configuration software to monitor data and remotely control. The PLC adopts the Siemens brand, with an S7-1513+DP as the master module and an S7-1214+DP as the slave module. The master and slave stations support DP and Ethernet communication.
2. The water pump of the actuator is controlled by Siemens G120 inverter. The inverter can adjust the speed of the water pump in real time according to the analog output signal or communication method of PLC, so as to achieve the purpose of controlling the flow.
3. The instruments and sensors of the actuator are connected to PLC-S7-1214 through DP/PA coupler and AFD for communication.
4. The actuator is equipped with 2 pressure sensors and temperature sensors supporting DP protocol, which can provide ring network communication, multi-point communication and point-to-point communication
5. The actuator is equipped with 2 pressure sensors and temperature sensors supporting PA protocol, which can provide ring network communication, multi-point communication and point-to-point communication
6. The actuator is equipped with 2 pressure sensors and temperature sensors of HART protocol, which can provide ring network communication, multi-point communication and point-to-point communication
7. Configure a remote button hanging box with Siemens remote I/O module inside, and realize remote start and stop control of the equipment through Ethernet communication.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: three-phase five-wire 380V
Siemens G120 inverter parameters: 6SL3210-1PE11-8UL1 Input: 3*400-480V, output: 0-input voltage
Siemens PLC Siemens 1214C DC/DC/DC (6ES7 214-1AG40-0XB0)
Siemens 6ES7 511-1CK01-0AB0 PLC CPU 1511C-1 PN DI16/DQ16, AI5/AQ2
RS485 signal board CB1241 6ES7 241-1CH30-1XB0
Siemens PLC analog expansion module 6ES7 232-4HB32-0XB0 SM 1232 AQ 2 x 14 bits
Siemens DP module CM1542-5 6GK7 542-5DX00-0XE0
2.2 Dimensions and Weight
Size 1: Length 2130mm Width 752mm Height 2055mm
Weight 1:<427kg
Size 2: 1705mm Width 703mm Height 1736mm
Weight 2:<234kg

III.Components List and Detailed Introduction
3.1 Main Part

Number

Name

1

SLM-001301 inverter module

2

SLM-001302 S7-1200 PLC module

3

SLM-001303 S7-1500 PLC module

4

SLM-001304 DC relay module

5

SLM-001305 module

6

SLM-001311 module

7

SLM-001310 button module

8

SLM-001309 module

9

AC 220V socket

10

Three-phase power terminal

11

DC24V terminal

12

4P air switch

13

Emergency stop button

14

SLM-001308 Hart module

15

SLM-001306 touch screen module

16

SLM-001307 thermostat module

3.2 Electrical Part

Number

Name

1

Experimental water tank 1

2

Temperature meter

3

SLM-001404 Ethernet remote module

4

SLM-001401 DP remote module

5

Stainless steel bucket

6

Pressure meter

7

SLM-001403 distributor module

8

SLM-001402 DP/PA coupler module

9

Emergency stop button

10

Proportional valve

11

Water pump

12

Single-phase water pump

13

Stainless steel water tank

14

Temperature meter

15

Experimental water tank 2

16

Pressure meter

17

Temperature meter

18

Pressure meter

19

Radiator

3.3 Accessories

No.

Name

Unit

QYT

1

USB-nimi cable Aimoxun

2m

1

2

MPI download cable



1

3

USB cable

1.5m

1

4

4mm electrical cable

1m double head red

40

5

4mm electrical cable

1m double head green

20

6

4mm electrical cable

1m double head yellow

20

7

4mm electrical cable

1m double head black

40

8

4mm electrical cable

1m double head blue

10

9

4mm electrical cable

1m double head dual color

20

10

4mm electrical cable

2m double head black

10

11

4mm electrical cable

2m double head red

10

12

4mm electrical cable

4m

1

13

Three-phase motor cable (shielded)

1.2m

1

14

DP communication cable single (purple)

5 heads

1

15

DP communication cable series (purple)

1m

3

16

Network cable

1.2m

1

17

Network cable

2m

5

18

Network cable

3m

1

19

PA communication cable (green)

1m

1

20

PA communication cable (green)

2m

2

21

Air pump

Set

1

22

Fuse tube

5A/5*20

10

23

DB9 communication cable



1

24

U disk

Piece

1

25

Magnetic rod

Piece

3

IV.Product Configuration List

No.

Name

QYT

1

SIEMENS G120 inverter

1 set

2

SIEMENS S7-1200

1 set

3

SIEMENS S7-1500

1 set

4

SIEMENS SIMATIC AFD4

1 set

5

SIEMENS SIMATIC ET 200SP

2 sets

6

SIEMENS SIMATIC HMI

1 set

7

SIEMENS SIMATIC FDC-157

1 set

V.Experiment list
1.Heater PID temperature control experiment
2.Water pump level PID control experiment
3.Water pump pressure PID control experiment
4.Proportional valve flow PID control experiment
