ZF0310 Shaping Bench Didactic Equipment Vocational Training Equipment Fluid Mechanics Lab Equipment
I. Product Overview

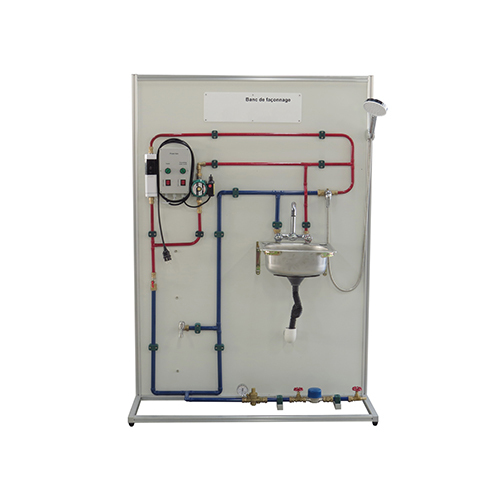

Overview: The equipment is used to simulate the equipment simulation of domestic pipeline water, and simulate the use, connection and drainage of water heaters, water meters, faucets, etc.
Features: The equipment is built with an aluminum profile frame, and the panel is made of aluminum-plastic panels. All experimental devices are installed on the aluminum-plastic panels, which is convenient for experimental observation.
The electrical part is installed inside the waterproof box to ensure the safety and reliability of the experiment.
II. Performance Parameters
Input power: AC220V±10% 50Hz
Weight: 100kg
Working conditions: temperature -10℃～+40℃, relative humidity <85% (25℃), altitude <4000m
Size: 1280*850*1750mm
III. Components List
Main part:
|
Number
|
Name
|
|
1
|
Pipe connector
|
|
2
|
Valve
|
|
3
|
Water meter
|
|
4
|
Pressure reducing filter valve
|
|
5
|
Faucet
|
|
6
|
Hot water safety valve
|
|
7
|
Circulation pump
|
|
8
|
Analog water heater
|
|
9
|
Control box
|
|
10
|
Double Control Mixing Valve
|
|
11
|
Sink
|
|
12
|
Drain pipe
|
|
13
|
Single Control Mixing Valve
|
Accessories
IV. Experimental List
Experiment 1 Pipeline Connection
Experiment 2 Use of Water Meter
Experiment 3 Simulation of water heater use
Experiment 4 Use of double control mixing valve
Experiment 5 Use of single control mixing valve
