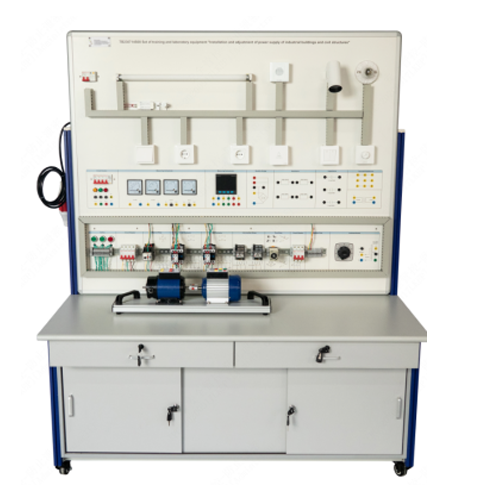

Set of Training and Laboratory Equipment Educational School Laboratory Workbench Vocational Education Equipment Electrical Trainer Bench

TB230714S08 Set of Training and Laboratory Equipment Educational School Laboratory Workbench Vocational Education Equipment Electrical Trainer Bench
I.Product Overview
1.1 Overview
This training device includes various types of basic electrical control devices and measurement devices. Through relevant experiments, you can become familiar with lighting circuits, motor control circuits, measurement circuits and other connection methods, master their control principles and methods, and corresponding knowledge and skills.
1.2 Features
1. The electrical control circuit components are installed on the wall panel mounting plate, which is easy to operate and replace, making it convenient for function expansion or new training; the selection of operation content is typical, practical, and scientific.
2. The operating table only requires three-phase four-wire AC power supply to be used;
3. Skills training uses control circuits and specially designed small motors, which can simulate various types of electric transmission systems in factories, and can meet the skills training requirements for installation, debugging, maintenance electricians, fault analysis and troubleshooting;
4. All components of the relay contact control line are connected to the terminals through wires. The wiring for student wiring only needs to protect the components; in practice, the wire is used to train the process.
5. The output power supply has monitoring display and short-circuit protection functions. When misoperation or incorrect wiring causes a short circuit during training, the equipment can automatically protect to avoid burning fuses and damaging electrical appliances, ensuring smooth training;
6. The training platform has a good safety protection system. The connection between the training circuit and the equipment power supply is through a safety socket and a high-reliability protective cover structure, which is safe and fast.
II.Performance Parameter
Input power: three-phase five-wire 380V±10% 60Hz
Weight: 223KG
Working conditions: Ambient temperature -10℃～+40℃
Size: 1720*940*2210
III.Components List and Detailed Introduction
3.1 Main Part

3.2 Power box part
3.3 Terminal panel part
3.4 Control Panel
3.5 Accessories
IV.Experiment List
Experiment 1 Fluorescent lamp test
Experiment 2 Motor forward and reverse rotation experiment
Experiment 3 AC contactor interlock experiment
Experiment 4 Power transformer test
Experiment 5 Research on Lighting Network Protection
