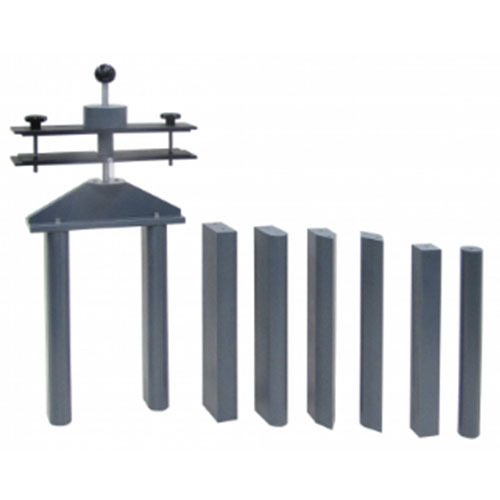

HM 162.46 Set Of Piers, Seven Profiles Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1.Description
Obstacles in flumes reduce the flow cross-section. This may lead to to backwaters upstream of the obstacles.
HM 162.46 contains several piers with different profiles typical for bridge piers. The discharge behaviour with little reduction of cross-section is studied with a single pier. Up to three piers mounted at the same time cause a considerable reduction of cross-section.
The effect of the angle of attack can be studied by turning the mounted pier.
A clamping device fixes the pier(s) in the experimental flume. An angle scale indicates the angle between pier nose and flow.
2.Technical details
piers for the experimental flume HM 162
little or considerable reduction of cross-section caused by piers
pier profiles: rectangular, circular, square, rounded on one end, rounded on both ends, tapering profile on one end and tapering profile on both ends
pier holder with clamping device for the mounting of piers into the experimental flume: up to three piers mounted at the same time on nine different positions
pier holder with angle scale to indicate the angle of attack
3.Technical data
Piers made of PVC
Angle scale
±90°
graduation: 15°
