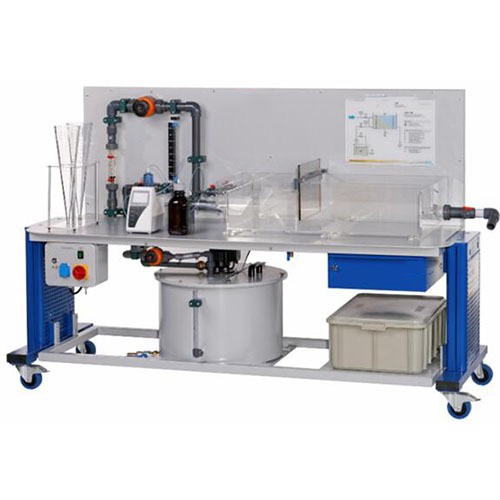

SR3032 Sedimentation Tank Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
Learning Objectives / Experiments
•learning the fundamental principle of separation of solids from suspensions in a sedimentation tank
•efficiency of the separation process dependent on
solid concentration of suspension
flow rate
position of baffle plate
•investigation of flow conditions dependent on
flow rate
position of baffle plate

1.Specification
separation of suspensions by sedimentation in transparent sedimentation tank
tank with pump to prepare and deliver a suspension comprising water and precipitated calcium carbonate
bypass to tumble and homogenise the suspension
mixing of the suspension with fresh water in sedimentation tank inlet zone
adjustment of fresh water and suspension flow rate by valves
precise piston burette for metering of ink to visualise flow conditions in the
influencing of flow conditions in the sedimentation tank with baffle plate that can be positioned
determination of solid concentrations at sedimentation tank inlet and outlet by Imhoff cones
2.Technical Data
Sedimentation tank
LxWxH: 1000x400x230mm
capacity: approx. 80L
material: plexiglass Suspension tank
capacity: approx. 100L
material: stainless steel Pump
max. flow rate: 75L/min
Material of construction: stainless steel
