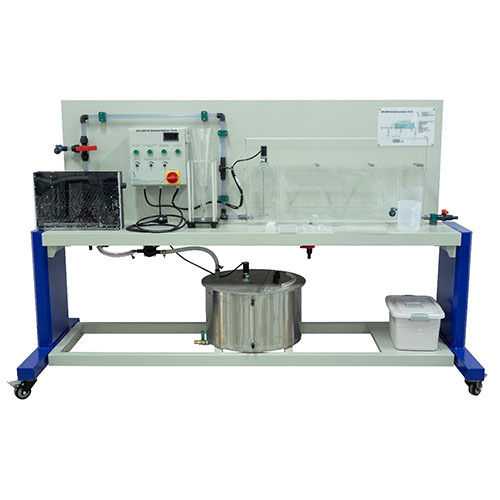

HM 142 Sedimentation Tank Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment
1. Equipment introduction
1.1 Overview
The training device includes industrial control components such as water pumps and motors. Through relevant experiments, you can become familiar with the working principle of the sedimentation tank, understand the sedimentation conditions of suspensions with different mixing ratios, and cultivate students' corresponding knowledge and skills, which is suitable for relevant teaching and skills training and assessment.
1.2 Features
(1) The training platform adopts a steel frame, and the surface is sprayed with anti-corrosion and anti-rust treatment. It is simple and elegant overall. It is equipped with universal wheels at the bottom, which can be flexibly moved, and the height can be adjusted independently according to the ground conditions. Measuring instruments and training power supplies are installed in built-in integrated hanging boxes, which are easy to use and not easily damaged.
(2) Equipped with electric motor and complete configuration.
(3) The training platform has a good safety protection system.
2. Technical parameters
Input power supply: European plug, single-phase three-wire 220V, 50Hz
Weight: about 250kg
Working conditions: -10℃～+40℃
Dimension: 2250mm*850mm*1450mm

3. Components list and detailed introduction
3.1 Main part
3.2 Power box part
3.3 Equipment configuration list
3.4 Accessories
4. Experiment list
Experiment 1 Sedimentation Experiment Tank Experiment
Experiment 2 Mixing and Stirring Motor Efficiency Test
Experiment 3 Thin slice unit observation experiment
