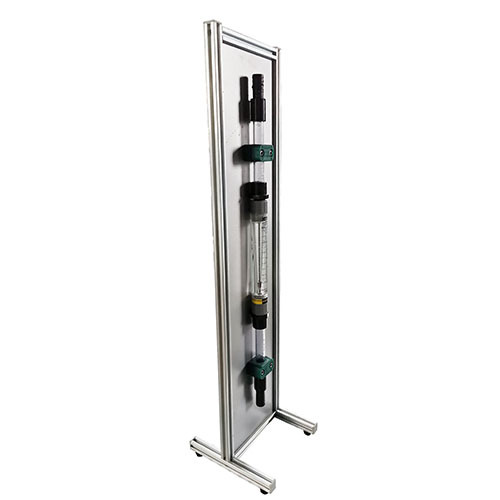

SR3203 Rotameter Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1. Product Overview
1.1 Product Introduction
In a vertical cone tube that expands from bottom to top, the gravity of the float of circular cross-section is borne by the hydrodynamic force, and the float can rise and fall freely in the cone tube. Under the action of flow velocity and buoyancy, it moves up and down, and balances the weight of the float, and the flow value can be read through the position of the float and scale.
1.2 Features
T-frame, easy to place, simple structure, easy to observe the flow.
1.3 Performance parameters
Dimensions: 200mm * 200mm * 530mm
Flowmeter parameters: 1.8-18LPM
1.4 Practical training items that can be completed
Flow measurement
Flow rate display of water supply
