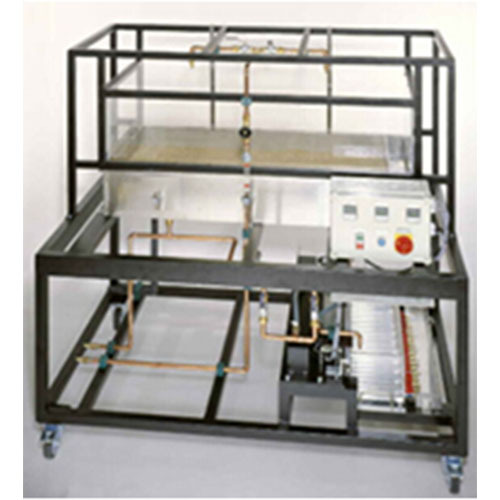

ZM7120 Rain Simulator Irrigation System Unit Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1.Experimental section
- volume: 1.300x600x200mm (approx.)
- max. sand height: 185mm
2.Precipitation device
- 2 nozzles, individually adjustable
- flow rate: 1...6,7L/min, square spray pattern
- precipitation: max. 320L/h
Measuring tank with 17 chambers
- volume: 17x0,9L
Timers
- precipitation: max. 99min59s
- lag time until start of measurements: max. 99min59s
- measurement time per chamber: max. 99min59s
4 drip pans: 305x215x55mm
Steel scale: 200mm
3.Related experiment
-To assess the variation in the intensity and uniformity of simulated rainfall with increasing disc aperture
-Determine rainfall intensity
Determine Christiansen’s Coefficient Cu
