I. Product Overview
1.1 Product Description
The proportional electric pneumatic kit is an advanced control device that integrates electric and pneumatic technologies. It is designed for industrial automation scenarios that require high-precision linear position adjustment. It converts electrical signals (such as voltage or current) into precise pneumatic output pressure or displacement through proportional control technology to achieve continuous linear position adjustment of actuators (such as cylinders and valves). This kit is suitable for scenarios that require high dynamic response, repeatability and stability.
1.2 Product Features
(1) High-precision proportional control
(2) Electric-pneumatic hybrid advantages
(3) Fast dynamic response
II. Performance Parameter
2.1 Technical Parameters
Power supply parameters: two-wire DC 24V
2.2 Dimensions and Weight
Dimensions: 550mm*300mm*220mm
Weight:<10kg
III. Product Component Names and Function Introduction

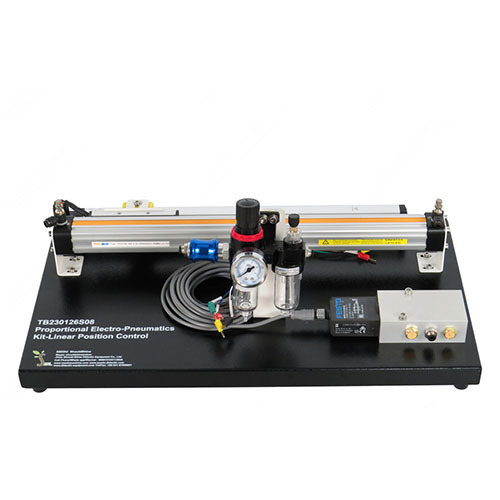

3.1 Product main part
|
No. |
Name |
Quantity |
|
1 |
Two-piece |
1 |
|
2 |
Proportional directional control valve |
1 |
|
3 |
Rodless double-acting cylinder |
1 |
|
4 |
Linear magnetostrictive displacement sensor |
1 |
|
5 |
Throttle valve |
2 |
IV.Experiment list
Experiment 1 Linear position control analog output experiment
