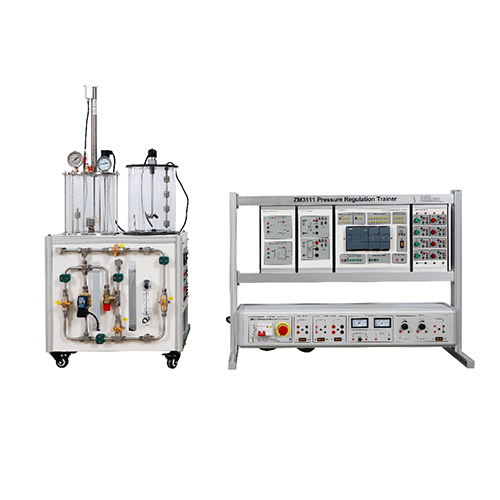

ZM3111 Pressure Regulation Trainer Didactic Equipment Vocational Education Equipment Process Control Trainer

Name: Pressure Regulation Trainer Didactic Equipment Vocational Education Equipment Process Control Trainer
Brand: SSEDU Vocational Training Equipment
SKU: ZM3111
Availability: InStock
Rating: 5 (1 reviews)

I.Product Overview
1.1 Overview
The pressure regulation process study teaching table allows: study of regulation principles, calibration and parameterization of regulators, converters, transmitters and valves. Study of loop regulation, all or nothing type regulation, P/PI/PID type regulation, delay with variable temperature. Calculation using monitoring software and data acquisition monitoring table.
1.2 Features
1. The product design is small, beautiful, sturdy and durable
2. The product is modularly designed, and the structure is clear and easy to understand
3. The product design is safe, and the safety valve is installed to ensure user safety
4. The product supports digitalization, and data collection can be collected through PC
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase AC220V 50Hz
Leakage protection circuit breaker: 2P; 16A;
Temperature transmitter parameters: PT100; DC24V; 0-100℃; output 4-20mA
Working environment conditions: ambient temperature -10℃～+40℃, relative humidity < 85% (25℃).
2.2 Dimensions and Weight
Size 1: 580*580*1230mm
Weight 1: <50kg
Size 2: 1010*440*780mm
Weight 2: <50kg

III.Components List and Detailed Introduction
3.1 Main Part

Number	Name
1	Electronic level gauge
2	Pressure gauge
3	Exhaust valve
4	Electronic pressure gauge
5	Thermometer
6	Stirring motor
7	Mixing water tank
8	Four-link level gauge
9	Electrical frame
10	Digital level switch
11	Heater
12	Stirring blade
13	TDS meter
14	Thermometer
15	Proportional control valve
16	Conductivity meter
17	Solenoid valve
18	Safety valve
19	Flow meter
20	Valve
21	Power box

3.2 Electrical Parts

Number	Name
1	Temperature transmitter hanging box
2	Drive circuit hanging box
3	PLC hanging box
4	Button switch hanging box
5	Circuit breaker
6	Emergency stop switch
7	DC24V output
8	DC5V/DC48V
9	Voltage and current measurement module
10	DC power supply module

3.3 Accessories Parts

Number	Name
1	Transparent air pipe
2	Network cable
3	Blue 2mm electrical cable
4	Green 2mm electrical cable
5	Yellow 2mm electrical cable
6	Red 2mm electrical cable
7	Black 2mm electrical cable
8	Yellow 4mm electrical cable
9	Red 4mm electrical cable
10	Black 4mm electrical cable
11	Blue 4mm electrical cable
12	Black 3mm electrical cable
13	Red 3mm electrical cable

IV. Product Configuration List

Number	Name	Quantity
1	Electronic level gauge	1
2	Pressure gauge	1
3	Exhaust valve	1
4	Electronic pressure gauge	1
5	Thermometer	1
6	Stirring motor	1
7	Mixing water tank	1
8	Four-link level gauge	1
9	Electrical frame	1
10	Digital level switch	1
11	Heater	1
12	Stirring blade	1
13	TDS meter	1
14	Thermometer	1
15	Proportional control valve	1
16	Conductivity meter	1
17	Solenoid valve	1
18	Safety valve	1
19	Flow meter	1
20	Valve	4
21	Power supply box	1
22	Temperature transmitter hanging box	1
23	Drive circuit hanging box	1
24	PLC hanging box	1
25	Button switch hanging box	1
26	Circuit breaker	1
27	Emergency stop switch	1
28	Transparent air pipe	1
29	Network cable	1
30	Blue 2mm electrical cable	5
31	Green 2mm electrical cable	10
32	Yellow 2mm electrical cable	20
33	Red 2mm electrical cable	15
34	Black 2mm electrical cable	15
35	Yellow 4mm electrical cable	2
36	Red 4mm electrical cable	2
37	Black 4mm electrical cable	2
38	Blue 4mm electrical cable	2
39	Black 3mm electrical cable	2
40	Red 3mm electrical cable	2

V.Experiment List
Experiment 1 Flow-proportional valve control experiment
Experiment 2 Liquid level-water pump PID control experiment
Experiment 3 Pressure-water pump PID control experiment
Experiment 4 Temperature-heating PID control experiment
Experiment 5 TDS test experiment
