Power Line Training Workbench School Training Bench Vocational Trainer Workbench Electrical Training Equipment

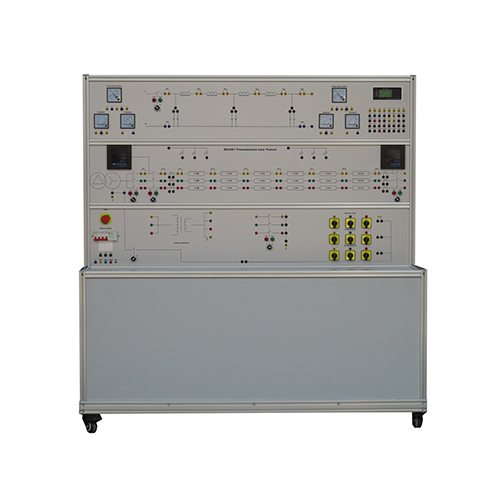

ZE3401 Power Line Training Workbench School Training Bench Vocational Trainer Workbench Electrical Training Equipment
1 Product Overview
1.1 Overview
This training device includes a variety of lines and corresponding measurement and protection devices. Through relevant experiments, you can be familiar with the operation characteristics of transmission lines, master its control principles and control methods, and cultivate students' corresponding knowledge and skills. Vocational school and technical school related professional teaching and skills training assessment.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure with a universal wheel at the bottom, which can be moved flexibly. The measuring instrument and the training power supply are built-in integrated installation, which is easy to use and not easy to be damaged.
(2) The test equipment is fully equipped and can be used in combination to complete the training content of various courses.
(3) The training platform has a good safety protection system.
2 Performance parameters
(1) Input power supply: three-phase five-wire system 380V±10% 60Hz
(2) Dimensions: 1600mm×800mm×1650mm
(3) Overall capacity: <3KVA
(4) Weight: 300kg
(5) Working conditions: ambient temperature -10℃～+40℃, relative humidity <85% (25℃)

3 Product Composition
3.1 Power Control Section
The power control screen adopts an aluminum alloy profile panel, a closed box structure, and is connected to the lower shelf as a whole.
3.2 Training table
The training table is supported by aluminum profile columns, and the bottom universal wheel has a brake, which can be moved and positioned flexibly.
3.3 Power control screen configuration
(1) Three-phase five-wire power input, controlled by leakage circuit breaker, equipped with emergency stop control button, press the emergency stop button circuit breaker to cut off the power supply in an emergency.
(2) Equipped with power indicator lights, power output sockets and safety power output terminals.
(3) Configure a variety of transmission lines, which can be used in combination to complete a variety of experiments.
(4) Built-in AC power supply with short circuit protection function.
3.4 Companion Devices
(1) Capacitive load
(2) Inductive load
(3) Resistive load
(4) Voltage transformer
(5) Current transformer
(6) Power factor table
(7) Microcomputer comprehensive protection device
(8) Three-phase multi-function meter
4 Can complete the training content
Three-phase transmission line corresponding circuit experiment
Single-phase transmission line corresponding circuit experiment
Reclosing experiment
Zero sequence current protection experiment
