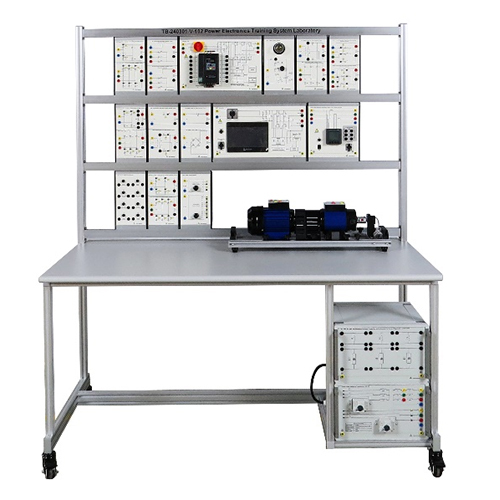

TB-240301-V-102 Power Electronics Training System Laboratory School Training Bench Vocational Education Equipment Electrical Training Equipment1. Product Introduction
1.1 Product Description
This power electronic device is a teaching tool designed for the education field, mainly used for experimental teaching of school-related courses. It adopts the form of a hanging box module, which is convenient for students to carry out various power electronic experimental operations. The device can meet the needs of various power electronic experiments, helping students to better understand and master the knowledge related to power electronics.
1.2 Product Features
1. Modular design: The hanging box module is adopted, which is convenient for students to quickly build experimental circuits and improve experimental efficiency.
2. Safe and reliable: The equipment has undergone strict safety design and testing to ensure safe operation under the three-phase AC380V experimental voltage, ensuring the personal safety of experimental personnel.
3. Easy to operate: The operation interface is simple and clear, suitable for students to use, even students without much experience can quickly get started.
4. Diverse functions: It can support a variety of power electronic experimental projects to meet different teaching needs.
2. Technical specifications
Technical parameters
All modules are provided with panels in DIN A4 high teaching standards, equipped with 4mm safety connection plugs, and wiring diagrams are printed in color.
Working environment: -5℃ to 40℃, relative humidity not exceeding 80%
Dimensions: 1680mm*870mm*2070mm
Weight: 180kg
3. Product component names and function introduction
3.1 Product main part
|
No
|
Name
|
Features
|
Qty
|
|
1
|
Product module part
|
Detailed introduction in 3.6.1
|
1
|
|
2
|
Product motor part
|
Detailed introduction in 3.6.2
|
1
|
|
3
|
Product chassis part
|
Detailed introduction in 3.6.3
|
1
|
|
4
|
Universal wheel
|
Convenient for mobile devices
|
4
|
3.2 Product module part
|
No
|
Name
|
Qty
|
|
1
|
W3C trigger control module
|
1
|
|
2
|
Overcurrent protection module
|
1
|
|
3
|
Three-phase meter module
|
1
|
|
4
|
IGBT controller
|
1
|
|
5
|
Inverter module
|
1
|
|
6
|
B2HK and B2HZ modules
|
1
|
|
7
|
M1C and M2C modules
|
1
|
|
8
|
B2C and M3C modules
|
1
|
|
9
|
B6HA and B6HK modules
|
1
|
|
10
|
M3 and B6C modules
|
1
|
|
11
|
B2 and B6 modules
|
1
|
|
12
|
B6C and B2HA modules
|
1
|
|
13
|
M1 and M2 modules
|
1
|
|
14
|
W1C trigger control module
|
1
|
3.3 Product Motor Part
|
No
|
Name
|
Qty
|
|
1
|
DC shunt motor
|
1
|
|
2
|
Three-phase squirrel cage asynchronous motor
|
1
|
3.4 Product chassis
|
No
|
Name
|
Qty
|
|
1
|
Three-phase isolation transformer
|
1
|
|
2
|
RL load box
|
1
|
3.5 Product accessories
|
No
|
Name
|
Qty
|
|
1
|
4mm safety connection cable (blue)
|
5
|
|
2
|
4mm safety connection cable (two-color)
|
5
|
|
3
|
4mm safety connection cable (red)
|
10
|
|
4
|
4mm safety connection cable (green)
|
10
|
|
5
|
2mm safety connection cable (black)
|
10
|
|
6
|
2mm safety connection cable (yellow)
|
10
|
|
7
|
4mm safety connection cable (yellow)
|
10
|
|
8
|
4mm safety connection cable (black)
|
10
|
|
9
|
Power line
|
1
|
|
10
|
U-shaped bridge
|
5
|
|
11
|
Fuse (1A)
|
5
|
|
12
|
Fuse (3A)
|
5
|
|
13
|
Network cable
|
1
|
|
14
|
Coupling
|
1
|
|
15
|
U disk
|
1
|
|
16
|
Incandescent lamp
|
1
|
4. Product teaching experiment list
(1) B2C single-phase half-controlled bridge rectifier circuit
(2) M3C three-phase half-controlled bridge rectifier circuit
(3) B2HA single-phase full-wave rectifier circuit
(4) B6C single-phase half-wave controlled rectifier circuit
(5) B2HK single-phase bridge full-controlled rectifier circuit
(6) B2HZ three-phase full-controlled bridge rectifier circuit
(7) B2HK single-phase bridge full-controlled rectifier circuit
(8) B2 three-phase half-wave rectifier circuit (common anode)
(9) B6 three-phase half-wave rectifier circuit
(10) B6C three-phase bridge rectifier circuit
(11) M3 Single-phase full-wave rectifier circuit
(12) B6HA three-phase half-wave controlled rectifier (common anode)
(13) B6HK three-phase half-wave controlled rectifier (common cathode)
(14) M1C single-phase half-controlled bridge rectifier circuit
(15) M2C three-phase half-controlled bridge rectifier circuit
(16) M2 single-phase bridge rectifier circuit
(17) W1C trigger control module
(18) Inverter operation test
(19) Three-phase measuring instrument connected to inverter control motor
(20) Load chassis test
(21) PID module operation test
