SR6120E Power Electronics Computer Kit School Training Bench Vocational Trainer Workbench Electrical Training Equipment1. Product Introduction
1.1 Product Description

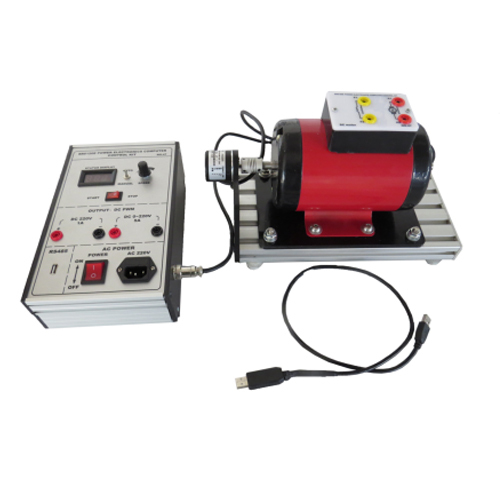

This product is a DC Shunt Motor Experiment Kit, comprising a DC shunt motor, a power supply module, an encoder, and various accessories. It enables the execution of DC shunt motor operation experiments via two modes: local manual control or remote software control. The system allows for the monitoring of data such as output voltage and motor speed, making it suitable for relevant educational and experimental settings.
1.2 Product Features
1. Supports two control modes—Manual (local) and Auto (remote)—offering operational flexibility.
2. Equipped with a voltmeter unit that displays the current output voltage in real-time, facilitating easy observation.
3. Features two output modes—fixed output (DC 220V) and adjustable output (DC 0-220V)—to meet diverse experimental requirements.
4. Enables software-based monitoring of motor speed and the generation of graphical plots; supports data export to facilitate experimental analysis.
5. Includes a comprehensive set of accessories and features simple wiring, accommodating the full range of operational requirements for DC shunt motor experiments.
2. Technical Specifications
2.1 Basic Technical Parameters
Operating Power Supply Single-phase three-wire, AC 230V, 50Hz
2.2 Equipment Physical Dimension and Parameters
Dimension 440mmX440mmX230mm
Weight ≤40kg
3. Product Introduction
3.1 Main Body of the Product
|
No.
|
Name
|
Function
|
Qty
|
|
1
|
Power Supply Module
|
Provides power supply for DC shunt motors, supports both local and remote control, and offers selectable fixed DC 220V or adjustable DC 0-220V voltage outputs. Equipped with components such as a voltmeter, potentiometer, and enable switch, it facilitates precise voltage regulation and output control.
|
1
|
|
2
|
DC Shunt Motor
|
As the core component of the experiment, the device operates by utilizing the voltage output from an interface module; it can be paired with an encoder and software to monitor rotational speed, and supports manual rotation for data acquisition.
|
1
|
3.2 Product Modules
|
No.
|
Name
|
Qty
|
|
1
|
Voltmeter Unit
|
1
|
|
2
|
Mode Selection Unit
|
1
|
|
3
|
Potentiometer Unit
|
1
|
|
4
|
Enable Switch Unit
|
1
|
|
5
|
Fixed Output Unit
|
1
|
|
6
|
Adjustable Output Unit
|
1
|
|
7
|
USB Connection Unit
|
1
|
|
8
|
AC Input Unit
|
1
|
|
9
|
Encoder Connection Point
|
1
|
3.3 Product Motor Section
|
No.
|
Name
|
Qty
|
|
1
|
Encoder
|
1
|
|
2
|
DC Shunt Motor
|
1
|
3.4 Product Accessories
|
No.
|
Name
|
Qty
|
|
1
|
USB Cable
|
1
|
|
2
|
Power Cord
|
1
|
|
3
|
4mm electrical safety connection cable (Red)
|
2
|
|
4
|
4mm electrical safety connection cable (Black)
|
2
|
|
5
|
USB Flash Drive
|
1
|
|
6
|
Fuse (1A)
|
5
|
|
7
|
Fuse (5A)
|
5
|
|
8
|
Fuse (10A)
|
5
|
4. Product Instructional Experiment List
(1) DC Shunt Motor Local Manual Control Experiment (Manual Mode)
(2) DC Shunt Motor Remote Software Control Experiment (Auto Mode)
