Pneumatic Training Workbench Pneumatic Bench Didactic Equipment Vocational Training Equipment

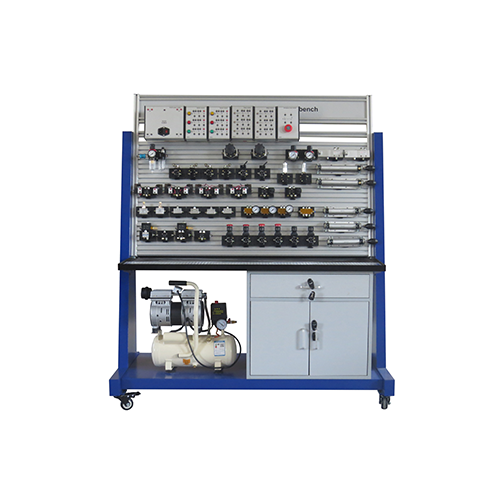

ZMP1100 Pneumatic Training Workbench Pneumatic Bench Didactic Equipment Vocational Training Equipment
1 Performance parameters
(1) Input power: single-phase three-wire system AC220V±10%
(2) Experimental table size: 1600mm (length) × 1000mm (width) × 1700mm (height)
(3) Groove interval: 25mm
2 System introduction
This system provides a professional and advanced training entity framework for the electric control loop training system.
This system is mainly used to solve electrical dynamic control. And provided preliminary training in electrical control technology. At the same time, it also introduces the physical principles of electrodynamics, as well as the functions and applications of electrodynamic components. Enable students to learn related knowledge and skills more in-depth.
This set of equipment has established a basic electrical control loop.
The professional profile panel has a parallel T-slot, and the components can be easily disassembled and assembled. See example
A short-circuit protection power supply unit is used for DC supply.
For the supply of compressed air, it is recommended to use a movable silent compressor (220V, maximum 8bar=800kpa).
The maximum working pressure is P=6bar (=600kpa).
If the control system is operated under working pressure P=5bar (=500kpa) and no repetitive air, you will get the most reliable operation

3 Product composition
3.1 Electrical control unit
The electrical control unit includes a 24v power supply hanging box, a button hanging box, a contactor hanging box, and an emergency stop hanging box.
3.2 Training platform
The training platform is composed of aluminum profile and aluminum alloy base plate, which can be moved and positioned flexibly. The actuator control box is installed on the base plate, which is beautiful and generous.
3.3 Pneumatic components
Picture and Chinese name of hydraulic components.
1 Single-acting cylinder
2 Double-acting cylinder
3 Three-position five-way solenoid directional valve (closed center type)
4 Three-position five-way solenoid valve (neutral exhaust type)
5 Three-position five-way solenoid directional valve (neutral pressure type)
6 Double solenoid two-position five-way reversing valve
7 Mushroom head type manual valve
8 5/2-way lever directional valve
9 Single pneumatic control two-position three-way
10 Single pneumatic control two-position five-way
11 Double air control two-position five-way
12 Double air control, two-position three-way
13 Doublet
14 Check valve
15 Pressure gauge
16 One-way throttle valve
17 Parked rotary button type manual valve
18 pressure reducing valve
19 Prototype two-position tee
20 3/2 two-way rolling cam mechanical valve
21 Flat button two-position three-way
22 Delay valve
23 Sequence valve
24 OR gate type shuttle valve
25 Double pressure valve
26 Quick exhaust valve
27 Distributor
