TB230126S31 Pneumatic Arm Training Module Pneumatic Training Equipment Didactic Equipment Vocational Training Equipment
1. Product Introduction
1.1 Product Description

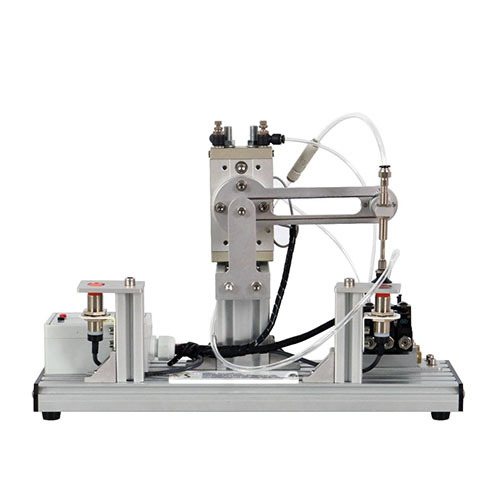

TB230126S31 Pneumatic Arm Module is a training device designed for automation teaching, suitable for students and teachers to learn pneumatic control, sensor application and mechanical transmission principles. By simulating industrial grabbing and handling scenes, it helps users master the comprehensive application technology of pneumatic actuators, synchronous belt drive and PLC programming
This equipment consists of a rotary cylinder, a suction cup mechanism, a synchronous belt drive system and a sensor detection unit, and realizes the material grabbing and position exchange functions through an external PLC and air source. The core functions are: detecting the material position through the sensor, controlling the suction cup to grab the material, and using the rotary cylinder and synchronous belt drive system to realize the precise handling of the material between the left and right stations. The equipment has a compact structure and supports two-way material transfer experiments.
1.2 Product Features
1. Intuitive teaching design
The transparent base and visual suction cup action clearly show the material grabbing and rotating process.
Modular interface, easy to link with PLC and other teaching equipment.
2. Combination of pneumatic and mechanical
Using rotary cylinder and synchronous belt drive to demonstrate the principle of precise angle control and power transmission.
Equipped with vacuum suction cups to simulate industrial grabbing scenarios.
3. Flexible control
Supports bidirectional material handling (left→right or right→left), and is compatible with a variety of PLC program logics.
Integrated inductive proximity switch to detect material status in real time.
4. Safe and reliable
DC24V low-voltage power supply meets teaching safety standards.
The aluminum alloy frame is stable and durable, and is suitable for high-frequency experimental needs.
2. Technical Specifications
Basic technical parameters
|
Power supply voltage |
DC 24V |
|
Air source pressure |
0.4 MPa~0.6 MPa (external air pump required) |
Equipment appearance parameters
|
Dimension |
460mm*190mm*275mm |
|
Weight |
≤5kg |
3. Product Component Names and Function Introduction
3.1 Product main body
|
No. |
Name |
Qty.
|
|
1
|
Junction box
|
1
|
|
2
|
Capacitive sensor
|
2
|
|
3
|
Rotary cylinder
|
1
|
|
4
|
Vacuum generator
|
1
|
|
5
|
Suction cup
|
1
|
|
6
|
Solenoid valve
|
3
|
3.2 Product accessories
|
No. |
Name |
Qty. |
|
1 |
25-core signal cable |
1 |
|
2 |
Block |
3 |
|
3 |
Air pipe (3m) |
1 |
|
4 |
2mm safety electrical cable (green,100cm) |
5 |
|
5 |
2mm safety electrical cable (black,100cm) |
1 |
|
6 |
2mm safety electrical cable (red,100cm) |
1 |
|
7 |
2mm safety electrical cable (yellow,100cm) |
4 |
|
8 |
U disk |
1 |
4. Product Teaching Experiment List
(1) Basic operation and use of equipment
