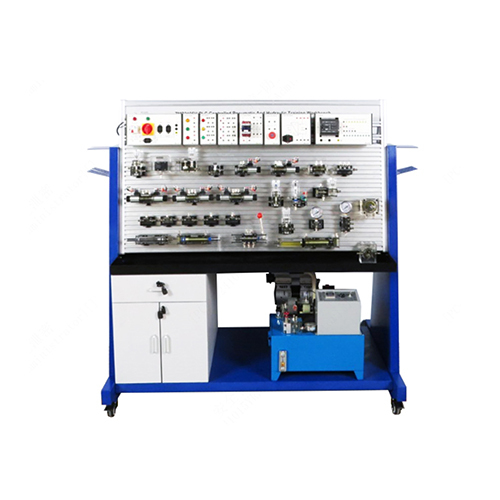

PLC Controlled Pneumatic and Hydraulic Training Workbench Mechatronics Trainer Teaching Equipment Vocational Training Equipment

No.ZMP2105H

ZMP2105H PLC Controlled Pneumatic and Hydraulic Training Workbench Mechatronics Trainer Teaching Equipment Vocational Training Equipment

Dimension
1650mm*1050mm*1730mm
Weight
<345kg
  • PLC Controlled Pneumatic and Hydraulic Training Workbench Mechatronics Trainer Teaching Equipment Vocational Training Equipment

Description

ZMP2105H PLC Controlled Pneumatic and Hydraulic Training Workbench Mechatronics Trainer Teaching Equipment Vocational Training Equipment
I.Product Overview
1.1 Overview
This system uses transparent hydraulic components, modular aluminum box structure, movable oil circuit joints, and general electrical circuits. Using the tools and materials that come with it and referring to the experimental instructions, it can easily control, experiment, and test various common hydraulic transmissions. It enables students to understand the internal principles, structures, and working processes of oil circuits and hydraulic components, and is an essential instrument for hydraulic transmission teaching.
1.2 Features
(1) The equipment is composed of a high-strength sheet metal frame, which is beautiful and durable. The bottom is equipped with universal wheels for easy movement. It is equipped with a cabinet for storing tools and devices, and the hydraulic station is integrated at the bottom of the equipment. The various hydraulic valve blocks are fixed on a special substrate profile, and the panel grooves are spaced 25mm apart, so that various components can be easily plugged in and out. The upper part is placed on the electric control hanging box, which is compact as a whole.
(2) Each hydraulic component is equipped with an oil circuit transition base plate, which can be easily and freely installed on the panel. The oil circuit overlap adopts an open and closed quick-change joint, which is easy to disassemble and assemble, does not leak oil, reduces losses, and maintains environmental hygiene.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: Input power: single-phase three-wire AC220V
Groove spacing: 25mm
Specifications: Cabinet: 1
Desktop structure: 1
Split groove casters: 4
Safety limit speed range: 1000-1500 rpm
When the hydraulic pump is working, the noise is ≤58dB0 at 1.5m away from the hydraulic table
Illumination: 0…2kW/㎡
Tilt: 0…90°
2.2 Dimensions and Weight
Dimensions:1650*1050*1730mm
Weight:<345kg

III.Components List

3.1 Main Part

Number

Name

1

Frame

2

Panel

3

Hydraulic station

4

Air pump

5

Cabinet

6

Universal wheel

3.2 Electrical Parts

Number

Name

1

Power module

2

Indicator module

3

Button module

4

Relay module

5

AC contactor module

6

Emergency stop module

7

Inverter module

8

PLC module



3.3 Accessories

Number

Name

1

Air pipe RPU4*2.5 transparent

2

Pneumatic four-way connector ∮4

3

Pneumatic three-way connector PE4

4

Trachea scissors TK-3

5

4mm electrical cable 2 meters double-ended black

6

4mm electrical cable 2 meters double-ended two-color

7

2mm electrical cable 100CM red

8

2mm electrical cable 100CM black

9

2mm electrical cable 100CM yellow

10

2mm electrical cable 100CM green

11

Transparent hydraulic hose (600mm 12 pieces, 1000mm 10 pieces, 1200mm 10 pieces)

12

Power cord

13

Spare oil pipe connector


3.4. Hydraulic components
hydraulic station:
(1): Oil filling port;
(2): Overflow valve;
(3): Oil return port;
(4): Oil outlet;
(5): Pressure gauge;
(6): Hydraulic station switch;
(7): Speed adjustment knob;
(8): Tachometer;
(9): Oil tank;
(10): Liquid level gauge;
(11): Motor;
1. Double-acting cylinder
2. Single-acting spring return cylinder
3. Booster Cylinder
4. Check Valve
5. Hydraulic control check valve
6. Overflow valve
7. Throttle valve
8. Speed regulating valve
9. Sequence valve
10. Pressure reducing valve
11. 2/2 way solenoid reversing valve
12.4/2 way solenoid reversing valve
13. 4/3 way solenoid reversing valve (O type, H type, M type)
14. Five-way
15. 5/3 way manual reversing valve
16. Pressure relay
17. Three-way valve
18. Pressure gauge
19. Auxiliary cylinder
20. Hydraulic motor
21. Hydraulic gear
3.5. Pneumatic components
1. Pressure reducing valve
2. Or gate shuttle valve
3. Rotary button valve
4. 5/2 way single solenoid valve
5. 5/2 way double air-controlled valve
6. 5/2 way manual reversing valve
7. 5/2 way double solenoid valve
8. Throttle valve
9. One-way pressure sequence valve
10. Triplex
11. Single-acting cylinder
12. Double-acting cylinder

3.6 Product Configuration List

No.

Name

QYT

1

Transparent double-acting cylinder (with stroke collision block)

1

2

Transparent spring return cylinder

1

3

Transparent booster cylinder

1

4

Transparent hydraulic control check valve

1

5

Transparent check valve

1

6

Transparent overflow valve

1

7

Transparent throttle valve

1

8

Transparent speed control valve

1

9

Transparent sequence valve

1

10

Transparent pressure reducing valve

1

11

Transparent 2/2 way solenoid valve DC24V, 2mm terminal

1

12

Transparent 4/2 way solenoid valve DC24V, 2mm terminal

1

13

Transparent 4/3 way solenoid valve (O type) DC24V, 2mm terminal

1

14

Transparent 4/3 way solenoid valve (H type) DC24V, 2mm terminal

1

15

Transparent 4/3 way solenoid valve (M type) DC24V, 2mm terminal

1

16

Transparent four-way valve

1

17

Transparent 5/3 way manual reversing valve

1

18

Transparent pressure relay, 2mm terminal

1

19

Transparent three-way valve

5

20

Transparent radial oil pressure gauge 0-10MPA

1

21

Transparent hydraulic auxiliary oil tank

1

22

Transparent bidirectional hydraulic motor

1

23

Transparent hydraulic station

1

24

Transparent hydraulic hose (600mm 12 pieces, 1000mm 10 pieces, 1200mm 10 pieces)

1

25

Spare oil pipe joint

10

26

Quick change adapter plate

30

27

2mm hydraulic solenoid valve bracket

8

28

2mm terminal insulated red

8

29

2mm terminal insulated black

8

30

Transparent hydraulic gear pump

1

31

Double-acting cylinder MAL20*100-CM

1

32

Single-acting cylinder MSAL20*100-CM

1

33

AC2000 triple fitting

1

34

Pressure reducing valve AR2000

1

35

5/2 way handle type reversing valve 4H210-06

1

36

5/2 way single electric control solenoid valve 4V11006

1

37

5/2 way double solenoid reversing valve 4V120-06B DC24V power supply

1

38

5/3 way solenoid reversing valve (center seal) 4V130C06B DC24V power supply

1

39

Quick exhaust valve QE-02

1

40

Rotary button valve M3PL11006R

1

41

One-way throttle valve KLA-06

1

42

Sequence valve KPSA-G1/8

1

43

Shuttle valve or gate type shuttle valve ST-02

1

44

Air compressor air pump oil-free machine 550W-8L

1

45

Pneumatic straight connector TPC06-02/ female thread direct PCF0602

1

46

Dual air control 5/2 way 4A120-06

1

47

British plug BS546 13A 250V

1

48

Trachea RPU4*2.5 transparent

40m

49

Pneumatic four-way connector ∮4

4

50

Pneumatic three-way connector PE4

6

51

Trachea scissors TK-3

1

52

4mm electrical cable 2 meters double-ended black

4

53

4mm electrical cable 2 meters double-ended two-color

2

54

2mm electrical cable 100CM red

20

55

2mm electrical cable 100CM black

20

56

2mm electrical cable 100CM yellow

20

57

2mm electrical cable 100CM green

20


IV. Experiment List
Experiment 1 5/2 way manual reversing valve experiment (pneumatic)
Experiment 2 Throttle valve experiment (pneumatic)
Experiment 3 Quick exhaust valve experiment (pneumatic)
Experiment 4 5/2 way single-electric solenoid valve experiment (pneumatic)
Experiment 5 5/2 way double-electric solenoid valve experiment (pneumatic)
Experiment 6 PLC control experiment (pneumatic)
Experiment 7 Pressure reducing valve experiment (pneumatic)
Experiment 8 One-way pressure sequence valve experiment (pneumatic)
Experiment 9 Booster cylinder test experiment (hydraulic)
Experiment 10 5/3 way manual reversing valve experiment (hydraulic)
Experiment 11 Pressure reducing valve test experiment (hydraulic)
Experiment 12 Throttle valve test experiment (hydraulic)
Experiment 13 Pressure relay test experiment (hydraulic)
Experiment 14 4/3 way solenoid reversing valve experiment (hydraulic)
Experiment 15 Overflow valve test experiment (hydraulic)
Experiment 16 Sequence valve test experiment (hydraulic)
