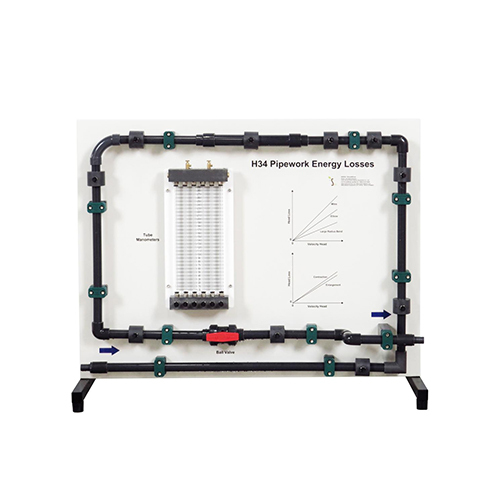

H34 Pipework Energy Losses Didactic Equipment Vocational Training Equipment Fluid Mechanics Lab Equipment
I.Product Overview
1.1 Overview
During the actual fluid flow, pressure losses will occur due to friction and turbulence (vortex). Pressure loss occurs in pipelines, pipeline components, accessories and measurement devices (such as flow meter, speedometer). These pressure losses must be considered when designing the pipe system.
H34 pipeline energy loss equipment allows research pipelines, pipeline elements, and pressure loss in the device. In addition, the pressure difference method is proposed to measure traffic.
1.2 Features
(1) The equipment adopts reasonable color matching, the appearance of the equipment is beautiful and strong.
(2) Equipment can enrich the number of experiments through multiple experimental modules.
(3) The equipment uses more durable materials to extend the service life of the equipment.
II.Performance Parameter
Size: 1080mm*540mm*1000
Weight: 47kg
Work conditions: The ambient temperature is 10 ℃ ～ 30 ℃, and the relative humidity is <75%(25 ℃).
III.Components List
3.1 Main Part
|
Number
|
Name
|
|
1
|
Water inlet
|
|
2
|
Exhaust valve
|
|
3
|
Multi-pipe pressure meter
|
|
4
|
Flow adjustment valve
|
|
5
|
Measuring hole
|
|
6
|
Drainage
|
3.2 Equipment configuration list
|
Number
|
Name
|
Quantity
|
|
Component 1
|
Multi -pipe pressure meter (with exhaust valve)
|
1
|
|
Component 2
|
Flow adjustment valve
|
1
|
|
Component 3
|
Oblique elbow
|
1
|
|
Component 4
|
Elbow elbow
|
1
|
|
Component 5
|
Large radius elbow
|
1
|
|
Component 6
|
Sudden expansion
|
1
|
|
Component 7
|
Suddenly shrink
|
1
|
3.3 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
Ten -meter trachea
|
1
|
|
2
|
Pyramid
|
1
|
IV. Experiment List
Experiment 1 How to connect and use the equipment
Experiment 2 Experimental testing and phenomenon
