ZF0312 Pipe Cleaning Study Bench Didactic Equipment Vocational Training Equipment Fluid Mechanics Lab Equipment
I. Product Overview

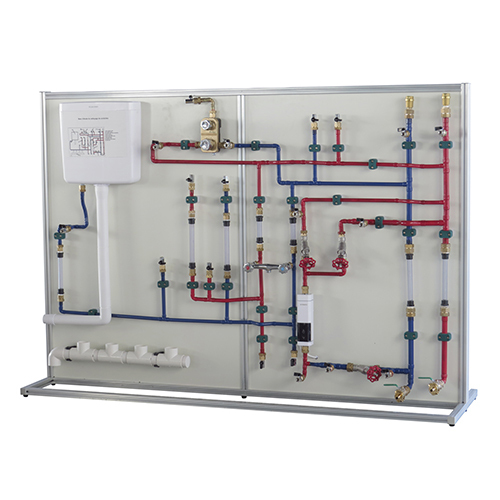

Overview: The equipment is used to simulate household pipe cleaning and sewage discharge, and clean up the simulation of pipe pollution.
Features: The equipment is built with an aluminum profile frame, and the panel is made of aluminum-plastic panels. All experimental devices are installed on the aluminum-plastic panels, which is convenient for experimental observation.
II. Performance Parameters
Input power: AC220V±10% 50Hz
Weight: 100kg
Working conditions: temperature -10℃～+40℃, relative humidity <85% (25℃), altitude <4000m
Size: 1970*560*1380mm
III. Components List
Main part:
|
Number
|
Name
|
|
1
|
Toilet
|
|
2
|
Thermostatic mixing valve
|
|
3
|
Water inlet
|
|
4
|
Quick exhaust valve
|
|
5
|
Transparent observation tube
|
|
6
|
Water pipe connection
|
|
7
|
Shut-off valve
|
|
8
|
Analog water heater
|
|
9
|
Mixing valve
|
|
10
|
Sewage pipe
|
Component part:
|
Number
|
Name
|
|
Component 1
|
Pipe connector
|
|
Component 2
|
Shut-off valve
|
|
Component 3
|
Quick exhaust valve
|
|
Component 4
|
Analog water heater
|
|
Component 5
|
Thermostatic mixing valve
|
|
Component 6
|
Sewage pipe
|
|
Component 7
|
Double Control Mixing Valve
|
|
Component 8
|
Toilet
|
|
Component 9
|
Transparent observation tube
|
Accessories
IV. Experimental List
Experiment 1 Pipeline Connection
Experiment 2 Pipeline cleaning
Experiment 3 Simulation of water heater use
Experiment 4 Use of double control mixing valve
Experiment 5 Use of single control thermostatic mixing valve
