TB240116S54 Pilot Lights School Educational Equipment Didactic Equipment Electrical Training EquipmentI.Product Overview
1.1 Overview

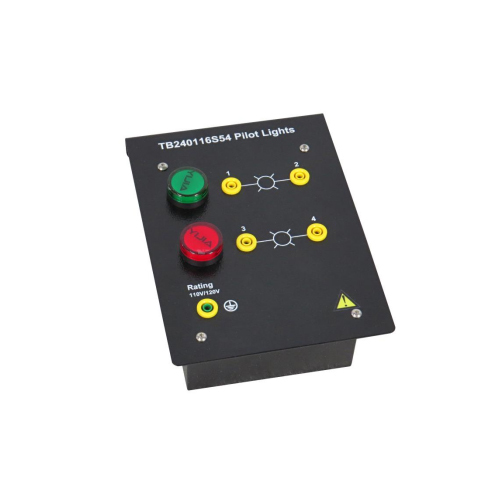

The indicator light module consists of two low-power electric lamps. One lamp is green and the other is red. Both lamps are rated for 110/120 V.
1.2 Features
1. The product has excellent electrical safety performance.
2. The product has beautiful design and simple structure.
3. The product adopts anti-corrosion measures and solid materials, which are strong and durable, greatly extending the service life of the product.
II.Performance Parameter
2.1 Technical Parameters
Power supply parameters: single-phase AC 110/120 V.
2.2 Dimensions and Weight
Dimensions: 205mmx150mmx100mm
Weight: ＜3kg
III.Components List and Detailed Introduction
3.1 Main Part
|
Number
|
Name
|
|
1
|
Terminal block
|
|
2
|
Green indicator light
|
|
3
|
Red indicator light
|
IV. Product Configuration List
|
Number
|
Name
|
Quantity
|
|
1
|
Indicator Lights
|
2
|
V. Experiment List
Experiment 1 Indicator light function
