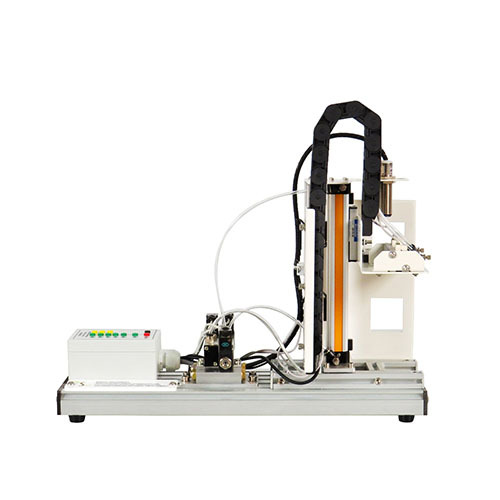

1. Product Introduction
1.1 Product Description
The TB230126S29 Pieces Thickness Measurement Module is a customized industrial automation training device designed for thickness measurement and electromechanical control teaching. Its modular aluminum profile structure is easy to assemble and expand, and the integrated I/O interface box (including 2mm terminals and 25-pole D-SUB plug) supports students to carry out electrical measurement and PLC control practice. Built-in 24V DC power supply, and provides 4 digital inputs, 3 digital outputs and 1 analog output interface.
1.2 Product Features
Adopts aluminum profile structure, which is easy to assemble and expand.
Integrated I/O interface box, provides 2mm terminals and 25-pole D-SUB plug connector, supports electrical measurement and signal transmission.
2. Technical Specifications
2.1 Technical parameters
Power supply parameters: two-wire DC 24V
2.2 Dimensions and weight
Dimensions: 450mm*150mm*400mm
Weight: <10kg
3. Product Component Names and Function Introduction
3.1 Product main body
|
No. |
Name |
Qty. |
|
1 |
Control element |
2 |
|
2 |
Motion element |
2 |
|
3 |
Silo |
2 |
3.2 Product Accessories
|
No. |
Name |
Qty. |
|
1 |
2mm safety electrical cable 100CM black |
1 |
|
2 |
2mm safety electrical cable 100CM red |
1 |
|
3 |
2mm safety electrical cable 100CM yellow |
3 |
|
4 |
2mm safety electrical cable 100CM green |
6 |
|
5 |
Air pipe RPU4*2.5 transparent |
3 |
|
6 |
25-pole plug connector |
1 |
|
7 |
USB flash drive |
1 |
|
8 |
Material block |
6 |
4. Product Teaching Experiment List (see the experiment guide for details)
(1) Material screening operation experiment
