TB230126S28 Pieces Distribution Training Module Mechatronics Trainer Vocational Training Equipment Teaching Equipment
1. Product Introduction
1.1 Product Description

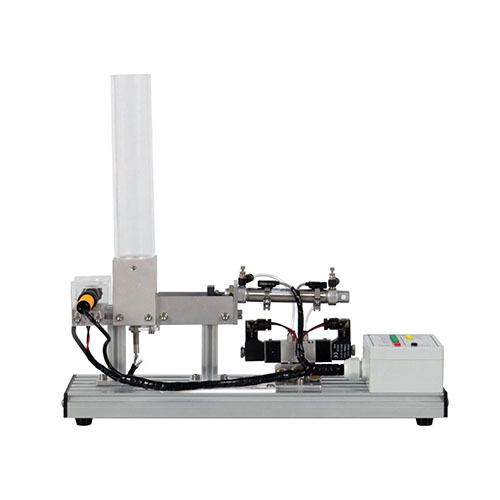

TB230126S28 Pieces Distribution Module is an automation device designed for teaching practice. It is suitable for students and teachers to learn and experiment with PLC control, sensor application, pneumatic technology and mechanical structure principles. By simulating industrial automation scenarios, it helps users master the basic operations and programming logic of material identification, distribution and control systems.
This equipment consists of a feed bin, a pneumatic actuator, a sensor detection system and an electrical control interface, and realizes automatic operation through an external PLC and air source. The core function is to detect the state of the material block through the sensor, control the cylinder to push the material block to the specified position, and realize the cyclic feeding and distribution of the material. The equipment adopts a modular design and can be used independently or matched with other teaching modules to adapt to a variety of experimental scenarios.
1.2 Product Features
1. Teaching-friendly
The transparent feed bin design intuitively displays the material movement process.
Modular structure, easy to disassemble and assemble and secondary development.
2. Combination of pneumatic and electrical
Mini cylinders and solenoid valves are used to demonstrate the pneumatic control principle.
Provides a standard 2mm safety terminal interface, compatible with mainstream PLC controllers.
3. Safe and reliable
Low voltage (DC24V) power supply meets teaching safety standards.
The aluminum alloy substrate is stable and durable, and can meet the needs of high-frequency experiments.
2. Technical Specifications
Basic technical parameters
|
Power supply voltage |
DC24V |
|
Air source pressure |
0.4 MPa~0.6 MPa (external air pump required) |
Equipment appearance parameters
|
Dimension |
460mm*240mm*430mm |
|
Weight |
≤5kg |
3. Product Component Names and Function Introduction
3.1 Product main body
|
No. |
Name |
Qty. |
|
1 |
Sensor |
2 |
|
2 |
Silo |
1 |
|
3 |
Cylinder (with 2 magnetic switches) |
1 |
|
4 |
Solenoid valve |
1 |
|
5 |
Junction box |
1 |
3.2 Product accessories
|
No. |
Name |
Qty. |
|
1 |
25-core signal cable |
1 |
|
2 |
Block |
9 |
|
3 |
Air pipe (3m) |
1 |
|
4 |
U disk |
1 |
|
5 |
2mm safety electrical cable(green，100cm) |
6 |
|
6 |
2mm safety electrical cable(black，100cm) |
1 |
|
7 |
2mm safety electrical cable(red，100cm) |
1 |
|
8 |
2mm safety electrical cable(yellow，100cm) |
2 |
4. Product Teaching Experiment List
(1) Basic operation and use of equipment
