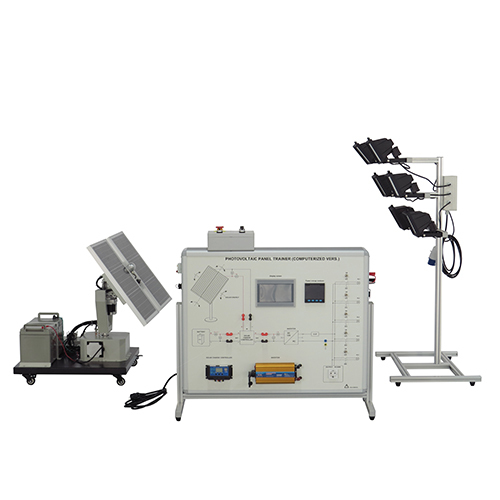

SR2112R Photovoltaic Panel Trainer (Computerized Vers.) Didactic Equipment Vocational Education Equipment Renewable Training Equipment
I. Product Overview
1.1 Overview
The training equipment system can simulate and demonstrate the process of solar power generation. To enable students to have a preliminary and intuitive understanding of solar power generation systems. It can cultivate students' homologous knowledge and skills, and is suitable for the teaching and skill training examinations of higher vocational colleges and junior students.
1.2 Features
(1) The training platform adopts the aluminum profile column frame structure, the measuring instrument and the training power supply are built-in and integrated, and the bottom has universal wheels. The units are flexible, easy to use, and not easy to damage.
(2) The experimental circuit and devices are fully configured and can be used in combination to complete the training content of various subjects.
(3) The training platform has a good safety protection system.
II. Performance Parameters
Input power: single-phase three-wire, AC220±10%, 50Hz
Weight: ＜200Kg
Working conditions: temperature -10～+40℃, no corrosive and combustible gas, no large amount of conductive dust
size :
Photovoltaic trainer panel main body: 984mm*400mm*830mm
Solar tracking unit: 920mm*850mm*800mm
Indoor simulated light source: 700mm*500mm*1400mm
III. Components List and Detailed Introduction
3.1 Main Part
|
Number
|
Name
|
|
1
|
Battery
|
|
2
|
Solar panel
|
|
3
|
Illumination sensor
|
|
4
|
Light angle sensor
|
|
5
|
Photovoltaic trainer panel body
|
|
6
|
Simulated light source
|
|
7
|
Tracking unit A axis
|
|
8
|
Tracking unit B axis
|
3.2 The Main Part of the Panel
|
Number
|
Name
|
|
1
|
Remote control panel
|
|
2
|
Display screen
|
|
3
|
Single-phase multi-function meter
|
|
4
|
Breaker
|
|
5
|
USB port
|
|
6
|
U-shaped connector
|
|
7
|
Solar Controller
|
|
8
|
Solar panel selection terminal
|
|
9
|
Solar Panel Connector
|
|
10
|
Load switch
|
|
11
|
Load socket
|
|
12
|
Inverter
|
3.3 Equipment Configuration List
|
Number
|
Name
|
Quantity
|
|
Component 1
|
Photovoltaic trainer panel body
|
1
|
|
Component 2
|
Solar Tracking Unit
|
1
|
|
Component 3
|
Indoor simulated light source
|
1
|
|
Component 4
|
Remote control unit
|
1
|
3.4 Accessories
AC bulb load
DC bulb load
4mm safety electrical cable (red and black)
Sliding load module
Charger
USB cable
Device cable
Software CD
|
No.
|
Name
|
Specification
|
Quantity
|
|
1
|
AC bulb load
|
DC12V
|
1
|
|
2
|
DC bulb load
|
AC220V
|
1
|
|
3
|
4mm safety electrical cable
|
Red 1 meter, head-to-head
|
1
|
|
4
|
4mm safety electrical cable
|
Black 1 meter, head-to-head
|
11
|
|
5
|
Sliding load module
|
10Ω
|
1
|
|
6
|
Charger
|
DC12V
|
1
|
|
7
|
USB cable
|
|
1
|
|
8
|
Device cable
|
|
4
|
|
9
|
software CD
|
|
1
|
IV. Experimental Content
Experiment 1 Photovoltaic cell open circuit voltage test experiment
Experiment 2 Photovoltaic cell short-circuit current test experiment
Experiment 3 Solar panel I-V characteristic test experiment
Experiment 4 Photovoltaic battery working power test experiment
Experiment 5 Different maximum power test experiments of photovoltaic cells under different light conditions
Experiment 6 Charge Controller Experiment
Experiment 7 Tracking controller operation experiment
Experiment 8 Photovoltaic cell output characteristics experiment
Experiment 9 Photovoltaic battery charging control principle experiment
Experiment 10 Inverter Basic Principle Experiment
Experiment 11 Software Monitoring Use
Experiment 12 Software Curve Use
Experiment 13 Software Data Recording
Experiment 14 Software Data Export
Experiment 15 Solar Illumination Collection Experiment
