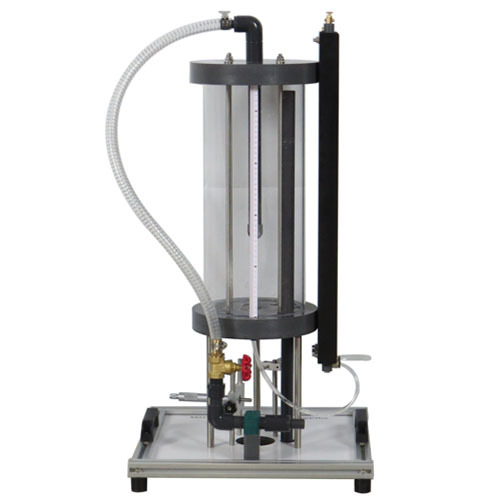

ZM8148 Orifice Discharge Apparatus Fluids Engineering Training Equipment Teaching Equipment Didactic Equipment1. Product Introduction
1.1 Product Description
This experimental setup is used to study the flow characteristics of fluids through orifices, to determine the outflow coefficient, and to explore the relationship between head and flow rate.
1.2 Product Features
The equipment is simple and straightforward.
It allows for direct measurement of the diameter of the water column at the outlet.
2. Technical Specifications
2.1 Dimension and Weight
Dimension: 860mmX675mmX930mm
Weight: <30kg
3. Product Component Names and Function Descriptions
3.1 Main Body of the Product
|
No.
|
Name
|
Quantity
|
|
1
|
Air vent valve
|
1
|
|
2
|
Overflow pipe
|
1
|
|
3
|
Inlet flow equalization basket
|
1
|
|
4
|
Dual-pipe differential pressure gauge
|
1
|
|
5
|
Water level indicator scale
|
1
|
|
6
|
Drain interface
|
1
|
3.2 Product Accessories
|
No.
|
Name
|
Quantity
|
|
1
|
Transparent steel wire flexible hose, inner diameter ∮20, outer diameter 25
|
1
|
|
2
|
304 stainless steel pipe clamp, 21-38
|
2
|
|
3
|
Air hose
|
1
|
|
4
|
Drain outlet modules of different diameters
|
4
|
4. Product Teaching Experiment List
(1) Understanding Torricelli's Law
(2) Research on the jet outflow at the device outlet
(3) Measuring the pressure difference at the outlet of different modules
