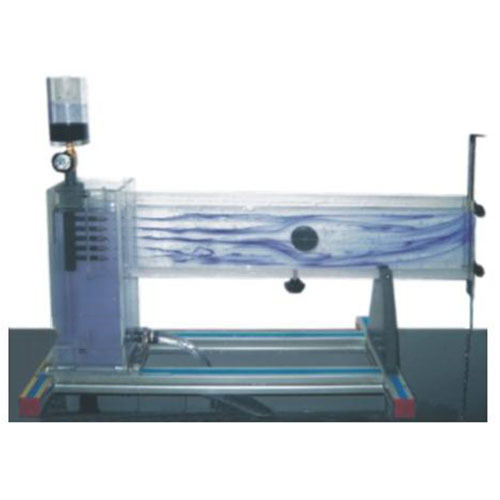

ZM8150 Open Channel Flow Demonstration Apparatus Fluids Engineering Training Equipment Educational Equipment Vocational Training Equipment1.Purpose
To introduce the characteristics of flow in an open channel at an elementary level for the students.
2.Ordering Specification
● Clear acrylic working section fed from stilling tank
● Six different models for investigation
● Dye injection system
● Quick release fitting for easy connection to hydraulics bench
The Flow Channel introduces students to the characteristics of flow in an open channel at an elementary level.
3.Demonstration & Visualisation Capabilities
Demonstrating basic phenomena associated with open channel flow
Visualization of flow patterns over or around immersed objects
4.Technical Detail
Dye injection needles: 5
Dye reservoir capacity: 0.45 litres
Width of channel: 15mm
Length of channel: 615mm
Depth of channel: 150mm
Models: – broad crested weir
onarrow crested weir
osymmetrical aerofoil
oasymmetrical aerofoil
osmall cylinder
large cylinder
