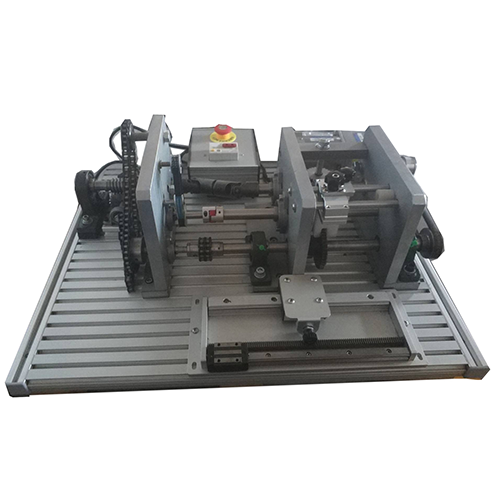

ZM1101T Movement Transmission And Transformation System Mechatronics Training Equipment Didactic Equipment Teaching Equipment
1 Product Overview
1.1 Overview
Through the training and training, master the chain drive, belt drive, gear drive, coupling and the change of transmission direction and transmission speed in the mechanical transmission, and better understand the principle in mechanical transmission.
1.2 Features
(1) The training platform uses an aluminum profile substrate structure, and the components are sequentially mounted on the substrate.
(2) Modular structure, complete transmission structure, can be combined at will, realize a variety of mechanical transmission,
2 Performance parameters
(1) Input power: single-phase three-wire system 220V±10% 50Hz
(2) Motor power: 60w
(3) Dimensions: 720mm*480mm*270mm
(4) Machine weight: <30kg
(5) Working conditions: ambient temperature -10 ° C ~ +40 ° C Relative humidity <85% (25 ° C)
3 Product composition
Platform, 60w AC geared motor, V-belt, pulley, sprocket, chain, bevel gear, turbine, worm, clutch, coupling, spur gear
4 Experimental content
Experiment 1 V-chain drive
Experiment 2 V belt-cylindrical gear-groove drive
Experiment 3 V belt-cylindrical gear-turbine worm-universal coupling transmission
Experiment 4 rack and pinion drive
