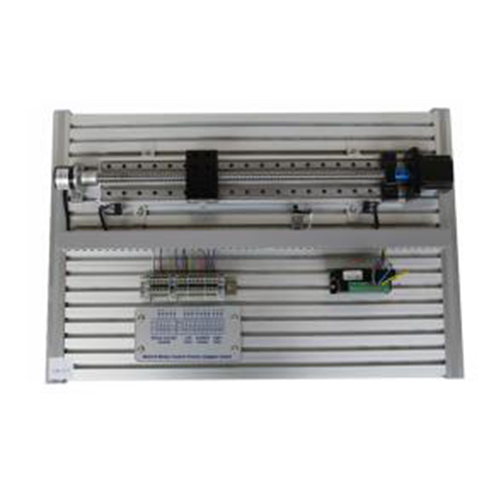

ZE3314 Motion Control Trainer (DC Motor) Teaching Workbench Equipment Educational Technology Electrical Training Equipment1 Product overview
1-1 Overview
The training device is a DC motor control model and has the same function as the actual DC motor. It can be used for programmable logic control or microcontroller control objects, including training content such as PLC, position control, sequential logic control, etc.
1-2 Features
1. This training machine is developed for the practical application of DC motor control technology, and can be used with different brands of PLC according to training requirements.
2, using a standardized modular design, the bottom has 4 cushions, placed light.
3. The power and signal wires of each component are connected to the safety terminals on the board, which is safe and convenient.
2 Performance parameters
(1) Dimensions: 600mm × 400mm × 300mm
(2) Weight: <50kg
(3) Working conditions: ambient temperature -10 °C ~ +40 °C Relative humidity <85% (25 °C)
3 Experiment list
Experiment 1 Sensor test
Experiment 2 DC motor running test
