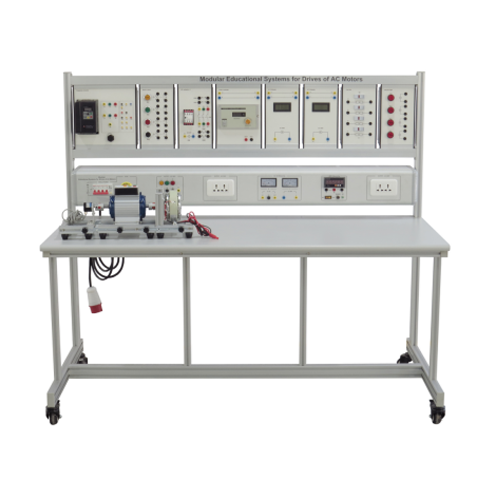

ZE3430 Modular Educational Systems for Drives of AC Motors Vocational Trainer Workbench Educational Laboratory Bench Electrical Training EquipmentI. Product Overview
1.1 Overview
This training device includes various types of motors and industrial control components. Through relevant experiments, students can become familiar with the operating characteristics of three-phase AC motors and the use methods of various industrial control components, master their control principles and control methods, and cultivate students' corresponding Knowledge and skills, suitable for the teaching and skills training assessment of related majors in higher vocational schools, colleges, secondary vocational schools and technical schools.
1.2 Features
(1) The training platform adopts an aluminum profile column frame structure, which is simple and elegant overall. The bottom is equipped with universal wheels, which can be moved flexibly and the height can be adjusted individually according to the ground conditions. The measuring instrument and training power supply are installed in a built-in integrated hanging box, which is easy to use and not easy to damage.
(2) Various types of motors are fully equipped and can be used in combination.
(3) The combination of software and hardware can complete the training content of various subjects
(4) The training platform has a good safety protection system.
II. Performance Parameters
Input power: three-phase five-wire system AC380V±10%
Weight: ＜250kg
Working conditions: Ambient temperature -10°C～+40°C Relative humidity <85% (25°C)
Dimensions: 1200mm×400mm×960mm
Machine capacity: <2KVA
III. Components List and Detailed Introduction
3.1 Main part:
|
Number
|
Name
|
|
1
|
Hanging box part
|
|
2
|
Power box part
|
|
3
|
Magnetic powder brake
|
|
4
|
Encoder
|
|
5
|
Three-phase asynchronous motor
|
|
6
|
Desktop
|
3.2 Power Box Part:
|
Number
|
Name
|
|
1
|
Total power supply --- 4P leakage circuit breaker
|
|
2
|
Emergency button
|
|
3
|
AC380V three-phase AC output fuse
|
|
4
|
Three-phase AC output indicator
|
|
5
|
AC220V socket
|
|
6
|
AC 5A Ammeter
|
|
7
|
AC 500V Voltmeter
|
3.3 Equipment configuration list:
|
Number
|
Name
|
Quantity
|
|
Component 1
|
Three-phase asynchronous motor
|
1
|
|
Component 2
|
Inverter hanging box
|
1
|
|
Component 3
|
Voltmeter hanging box
|
2
|
|
Component 4
|
Fuse Box
|
1
|
|
Component 5
|
Contactor hanging box
|
1
|
|
Component 6
|
Button hanging box
|
1
|
|
Component 7
|
Light Hanging Box
|
1
|
|
Component 8
|
Magnetic powder brake
|
1
|
|
Component 9
|
Encoder
|
1
|
|
Component 10
|
Magnetic Powder Brake Controller
|
1
|
3.4 Accessories
|
Number
|
Name
|
Quantity
|
|
1
|
USB cable
|
1
|
|
2
|
Fuse core (5A)
|
3
|
|
3
|
Fuse tube (5A 5*20)
|
6
|
|
4
|
Software disc
|
1
|
|
5
|
4mm safety electrical cable red 1 meter
|
8
|
|
6
|
4mm safety electrical cable black 1 meter
|
5
|
|
7
|
4mm safety electrical cable double color 1 meter
|
2
|
|
8
|
4mm safety electrical cable green 1 meter
|
8
|
|
9
|
4mm safety electrical cable blue 1 meter
|
5
|
|
10
|
4mm safety electrical cable yellow 1 meter
|
8
|
IV. Experimental Content
Experiment 1 Three-phase asynchronous motor inching
Experiment 2 Three-phase asynchronous motor self-locking control circuit
Experiment 3 Frequency converter speed regulation experiment
Experiment 4 Magnetic powder brake experiment
Experiment 5 Speed test experiment
Experiment 6: Software Use
Experiment 7: Software Data Export
