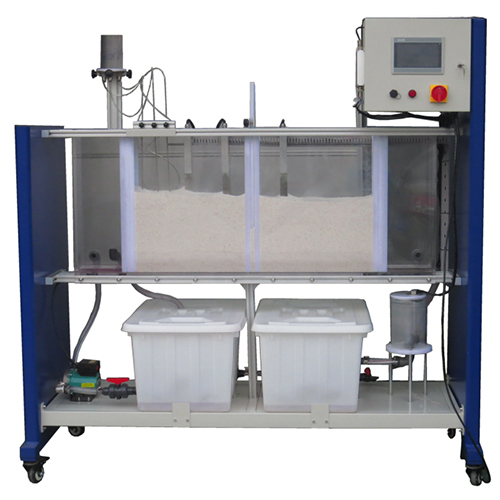

SR6005 Mobil Bench Didactic Equipment Vocational Education Equipment Fluid Mechanics Lab Equipment
1.Product overview
1.1Overview
One of the description methods in the study of seepage and groundwater flow is the visualization of streamlines.
The trainer includes a transparent water tank with sand, a closed water circuit with a storage tank and a pump, a pressure sensor, and a dye injection system with a dye injection needle. The experimental section is separated from the feed chamber and the discharge chamber by a fine screen, and a valve is used to adjust the water supply. The use of contrast agent can make the flow lines visible, because they occur in seepage and groundwater flow in the flow, so a transparent glass observation window is set up for the best observation of the experiment.
Various models allow for a wide range of tests, such as pressure distribution on the foundation or seepage and groundwater flow under sheet piles. The foundation model is equipped with a tube showing the pressure on the model, which can determine the pressure curve on the foundation.
The outlet pipe of the overflow pipe makes it easier for water to fall into the water tank, and the water tank is equipped with a liquid level sensor to observe the water volume change.
1.2Features
(1) The foundation of the training device is composed of carbon steel and aluminum profiles, with a stable structure and not easy to damage. Equipped with movable casters, easy to use.
(2) The fluid experiment device is made of transparent acrylic material, which is convenient for observation and experiment.
1.3Performance parameters
Dimensions: L×W×H 1820X670X1800mm
Weight: <200kg
Voltage: AC220V 50HZ
Experimental section size: L×W×H 1450X120X580mm
Water pump: power 205W, maximum flow 80L/min, lift 9M
Dye cylinder: inner diameter 80mm, height 140mm
2.Product composition
1 Dye bucket
2 Sheet pile model
3 Control box
4 Touch screen
5 Power switch
6 Power indicator light
7 Liquid level sensor
8 Sedimentation water tank
9 Clean water tank
10 Circulating water pump
11 Test section
12 Adjusting needle valve
3.Experimental content
Experiment 1 Determine the flow line of the dye in the permeable medium
Experiment 2 Flow line under the sheet pile
Experiment 3 Determine the pressure curve on the foundation
