TB-230117R-008 Mini Hydroelectric Power Plant Trainer Didactic Equipment Vocational Education Equipment Renewable Training Equipment

Name: Mini Hydroelectric Power Plant Trainer Didactic Equipment Vocational Education Equipment Renewable Training Equipment
Brand: SSEDU Vocational Training Equipment
SKU: TB-230117R-008
Availability: InStock
Rating: 5 (1 reviews)

1. Product Introduction
1.1 Product Description

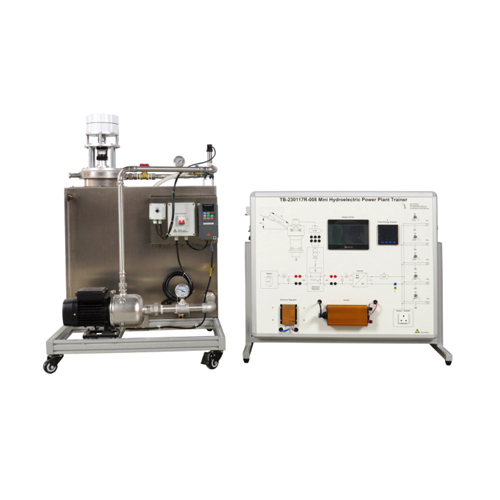

This training device system includes turbines, generators, water pumps, flow meters, pressure gauges and a variety of electrical instruments and meters, which enable students to have a preliminary and intuitive understanding of hydropower generation. Through relevant experiments, students can develop corresponding knowledge and skills. It is suitable for teaching and skill training assessment of related majors in higher vocational colleges, technical schools, secondary vocational schools and technical schools.
1.2 Product Features
(1) The training table adopts aluminum profiles and sheet metal structure, with fine structure, easy to use and not easy to damage.
(2) The experimental circuit and device are fully configured and can measure a variety of electrical parameters.
2. Technical specifications
2.1 Technical parameters
Input power: Single phase, three wires, AC220V±5%, 50Hz
Working conditions: ambient temperature: -10℃～+40℃, Relative humidity: ＜85% (25℃)
Portable resistor: 10Ω/5.7A 320w
UK plug: 13A/250V
Network cable: 1.5m
Fuse plug: 30A
2.2 Dimensions and weight
Dimensions: 1430mm×900mm×1200mm
Weight:: <150kg

3. Product component names and functions
3.1 Product power generation unit

No.	Name
1	Water tank
2	Liquid sight tube
3	Pressure gauge
4	Water pump
5	Drain
6	Flow meter
7	Pressure sensor
8	Ball valve
9	Pressure gauge
10	Rotary valve
11	Reducer
12	Coupling
13	Generator
14	Waterproof box
15	Circuit breaker
16	Inverter

3.2 Product Control Group Section

No.	Name
1	Circuit breaker
2	Network port
3	Controller
4	Inverter
5	Touch screen
6	Multi-function meter
7	Toggle switch
8	Socket

No.	Name
1	Battery
2	Light bulb Load

3.3 Product accessories

No.	Name
1	Connection cable
2	Three-core aviation plug
3	Short-circuit plug
4	4mm safety connection cable (black)
5	Charger
6	Network cable
7	Fuse
8	British plug

No.	Name
1	Portable resistor

4. Product Configuration List

No.	Name	Quantity
1	Water tank	1
2	Sight tube	1
3	Pressure gauge	1
4	Water pump	1
5	Drain port	1
6	Flow meter	1
7	Pressure sensor	1
8	Ball valve	1
9	Pressure gauge	1
10	Rotary valve	1
11	Reducer	1
12	Coupling	1
13	Generator	1
14	Waterproof box	2
15	Circuit breaker	2
16	Frequency converter	1
17	Network port	1
18	Controller	1
19	Inverter	1
20	Touch screen	1
21	Multi-function meter	1
22	Toggle switch	5
23	Socket	1
24	Battery	2
25	Connection cable	1
26	Three-core aviation plug	1
27	Short-circuit plug (black)	7
28	Short-circuit plug (red)	2
29	Portable resistor	1
30	4mm safety connection cable (black)	4
31	Charger	1
32	Network cable	1
33	Fuse	5
34	UK plug	1
35	Light	5

5. Product teaching experiment list
(1) Battery charging management system
(2) Inverter operation efficiency conversion
(3) Portable resistance experiment
(4) Effect of water pressure on power generation
(5) Liquid energy conversion efficiency experiment
(6) Effect of increasing load on power generation
(7) Software and touch screen operation experiment
